Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuse Blocks
>>
Fuse Block
>>
Door Locks and Power Mirrors Fuses
Door Locks and Power Mirrors Fuses

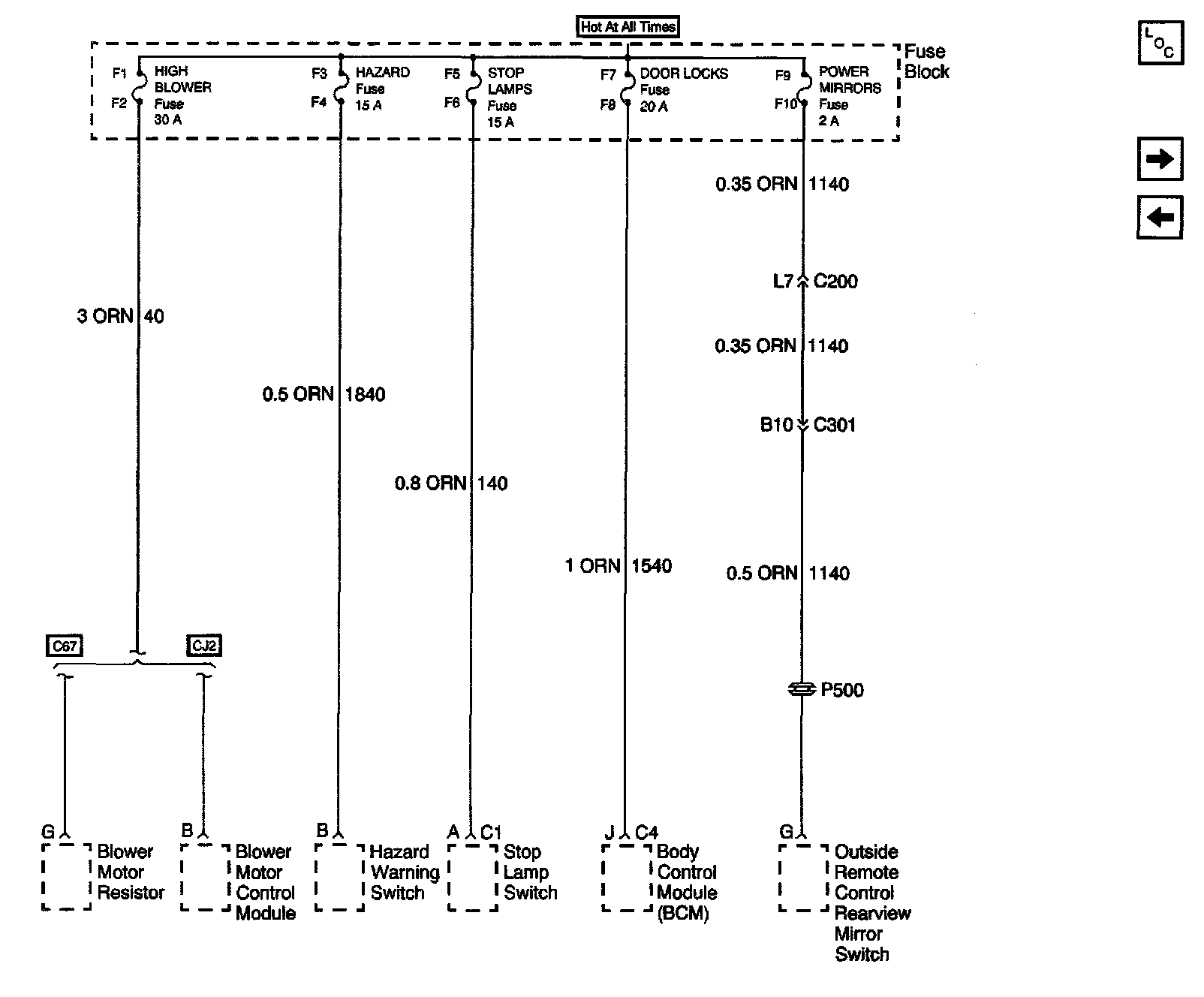

Power Distribution Schematics: High Blower, Hazard, Stop Lamps, Door Locks And Power Mirrors Fuses:
