Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Cigar Lighter/Auxiliary Outlets
Cigar Lighter/Auxiliary Outlets

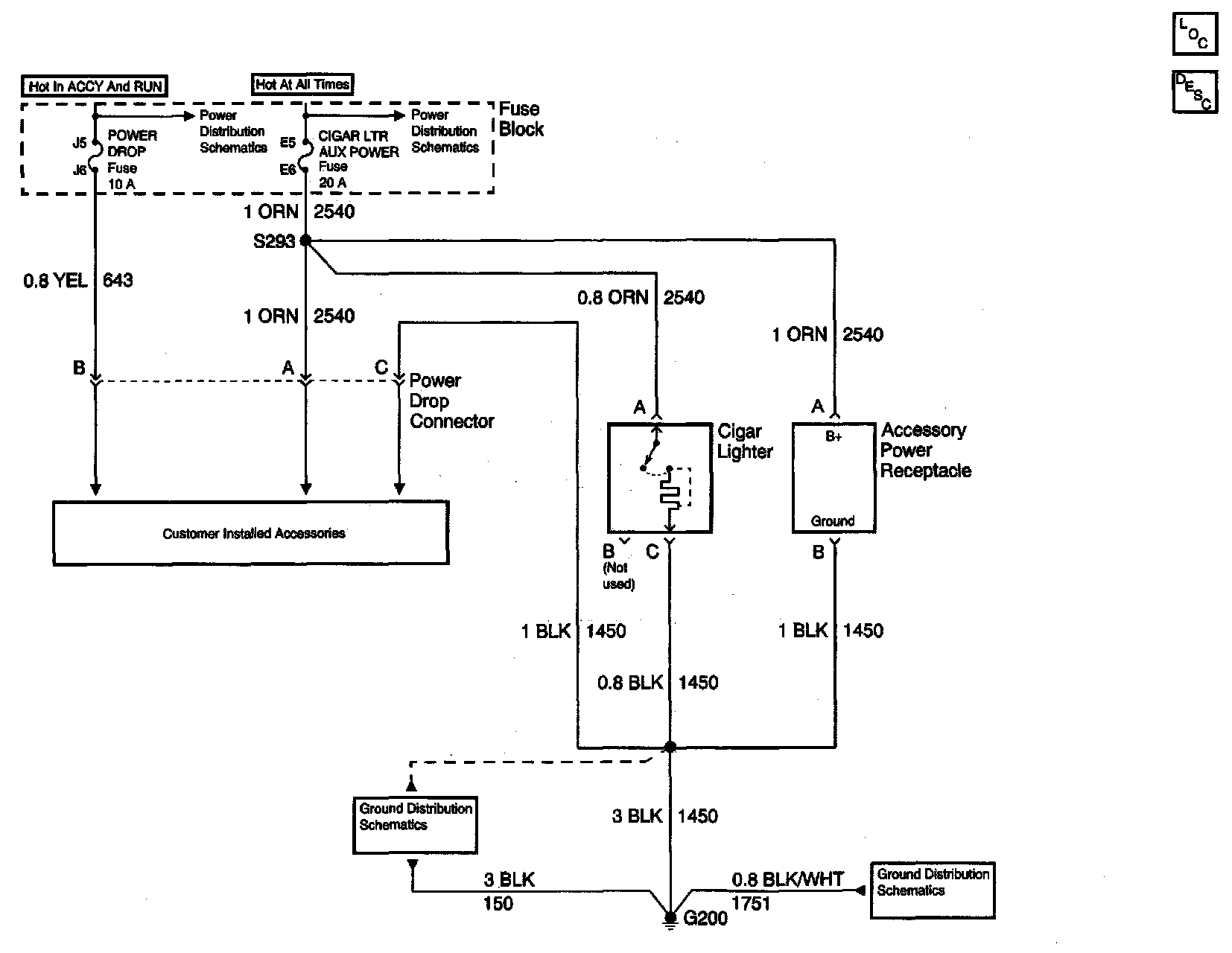

Cigar Lighter/Auxiliary Outlets Schematics: Cigar Lighter/Auxiliary Outlets Schematic:
