G302

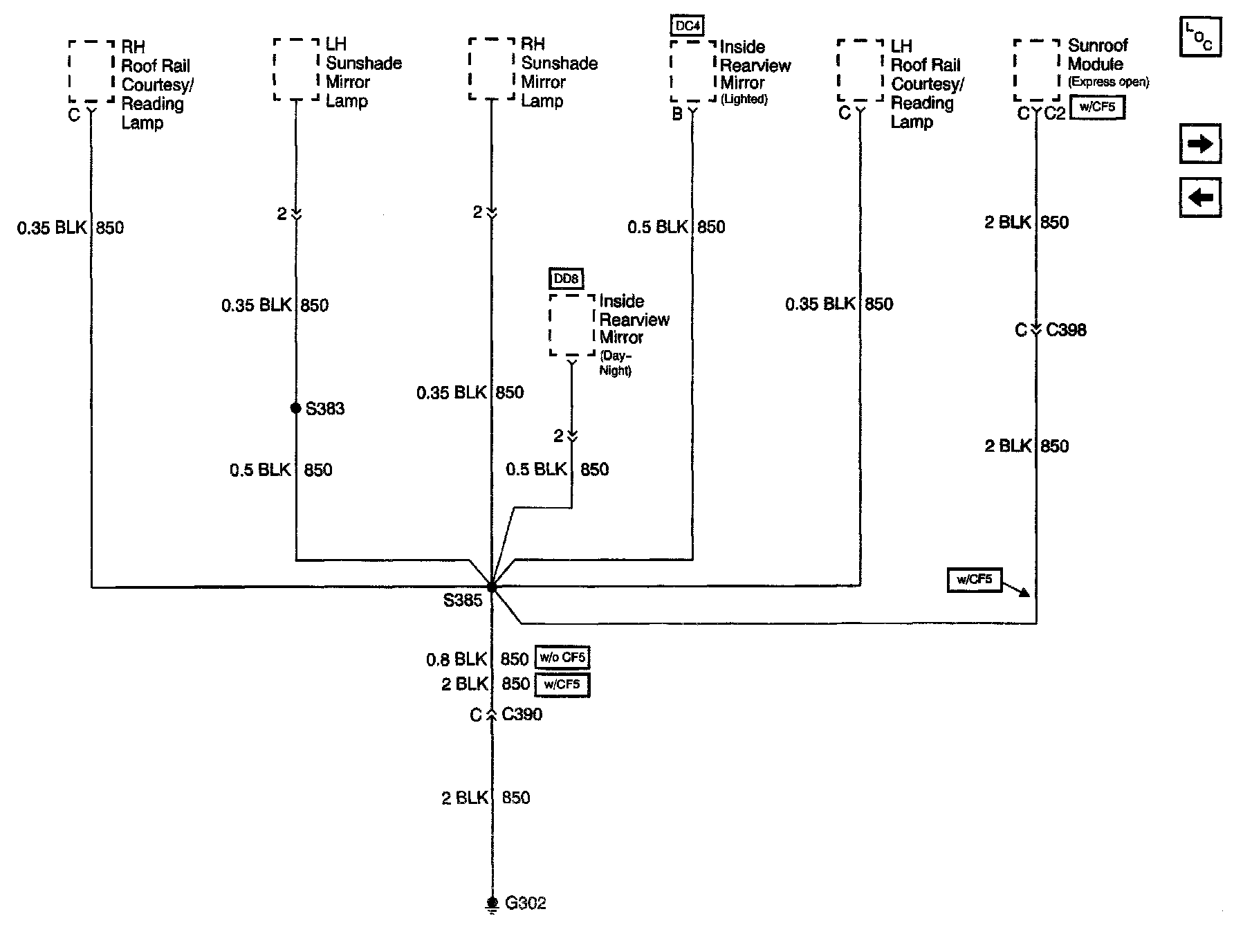

Ground Distribution Schematics: Ground G302 (Part 1 Of 2):

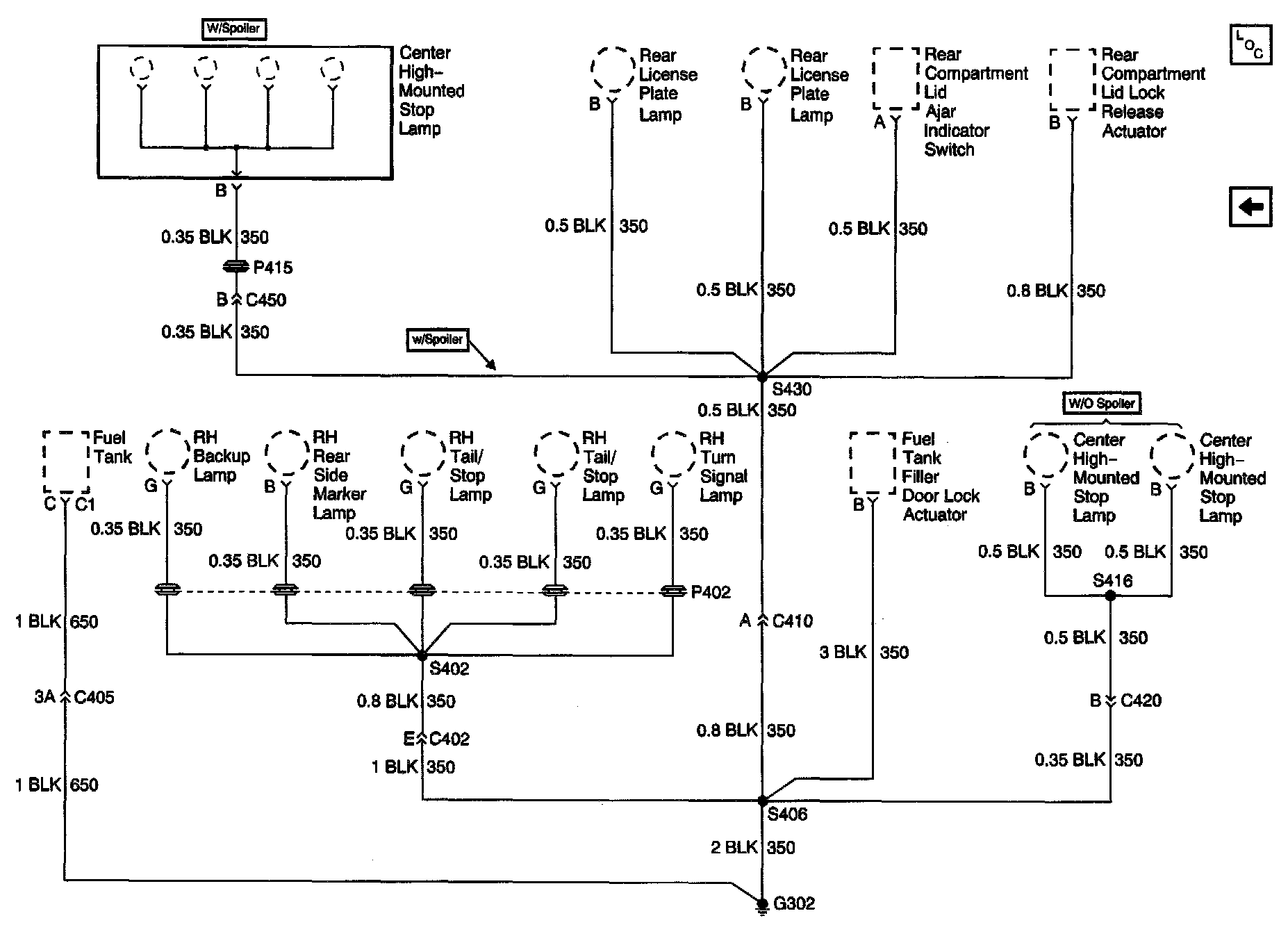

Ground Distribution Schematics: Ground G302 (Part 2 Of 2):
