Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G203
G203

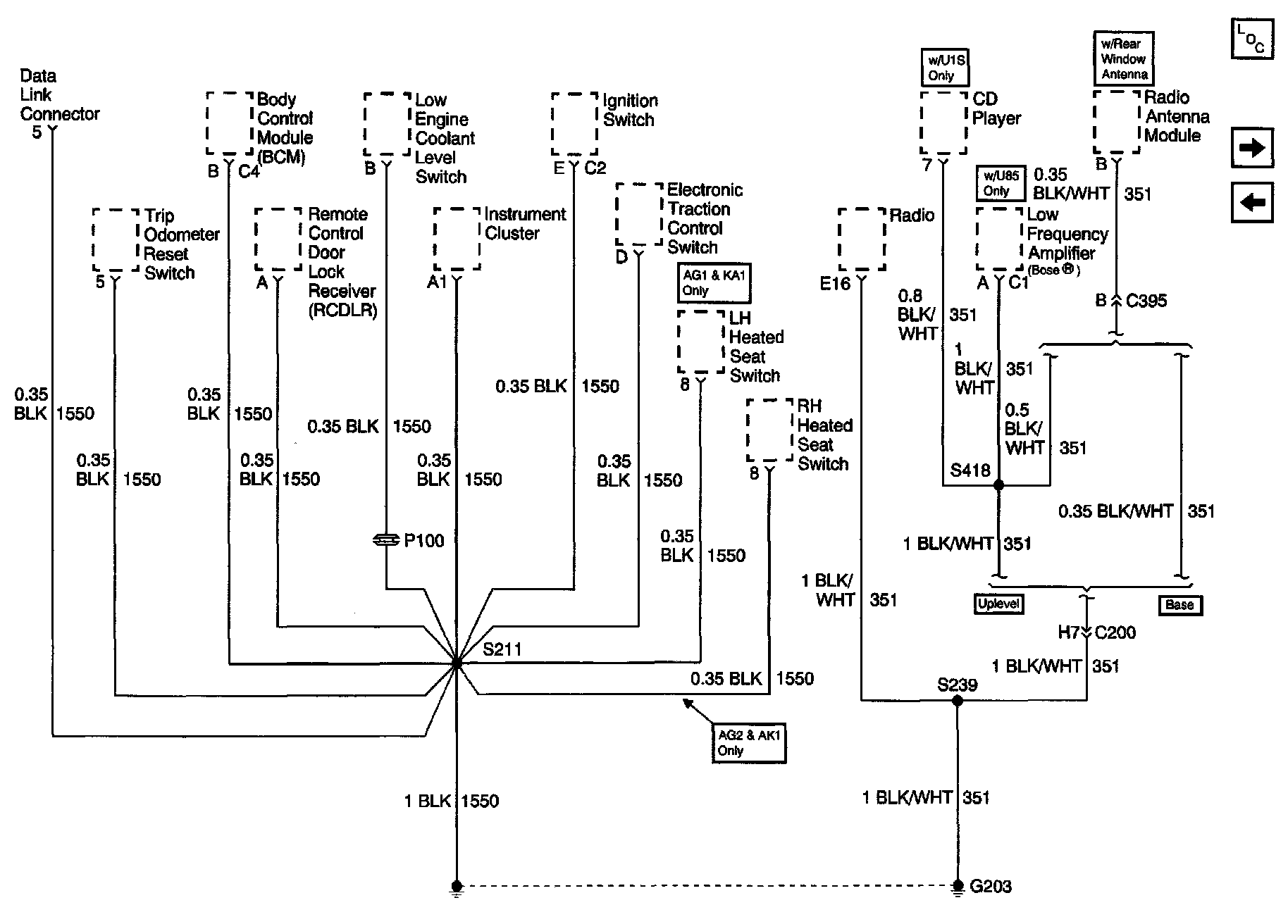

Ground Distribution Schematics: Ground G203:
