Compartment Replacement - IP

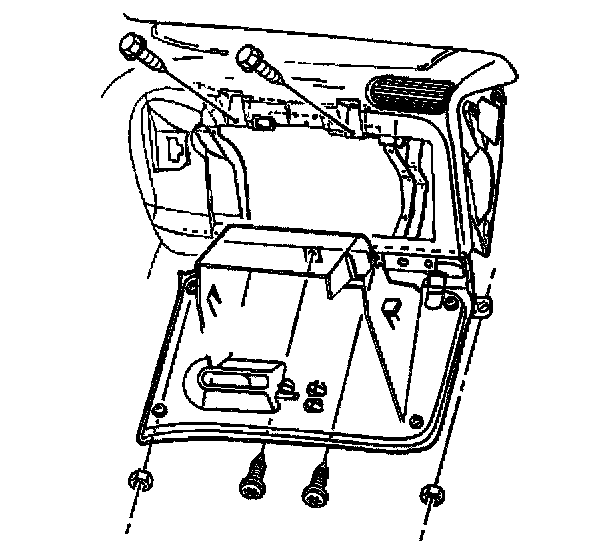

REMOVAL PROCEDURE
1. Open the instrument panel compartment.
2. Remove the bolts/screws from the instrument panel compartment hinge.
3. Turn the instrument panel compartment door stops 1/4 turn.
4. Loosen the screw that attaches the damper string.
5. Remove the loop of the damper string from the screw.
6. Remove the instrument panel compartment from the instrument panel.

INSTALLATION PROCEDURE
1. Align the instrument panel compartment to the instrument panel.

2. Install the bolts to the instrument panel compartment hinge.

Tighten
Tighten the instrument panel compartment hinge bolts to 4 N.m (35 lb in).

3. Install the instrument panel compartment door stops into each side of the instrument panel.
4. Turn the instrument panel compartment door stops 1/4 turn until fully seated.
5. Install the loop of the instrument panel compartment door damper string to the screw.
6. Tighten the screw to instrument panel compartment door damper string.

Tighten
Tighten the instrument panel compartment door damper string screw to 2 N.m (18 lb in).

7. Close the instrument panel compartment.
