Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left and right side instrument panel insulator.

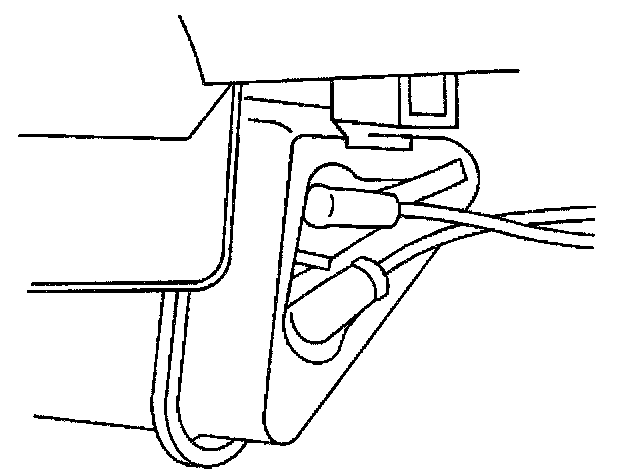

2. Disconnect the vacuum hoses from the vacuum tank.

IMPORTANT: It will be required to enter the vehicle from the drivers and passenger side to remove the bolts from the vacuum tank.

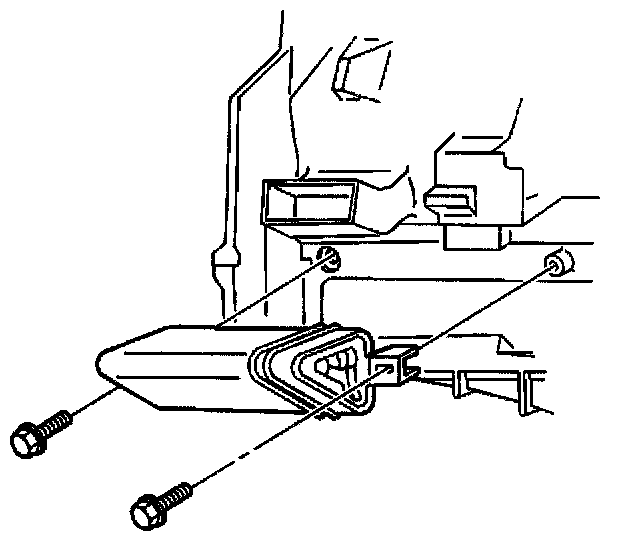

3. Remove the bolts that secure the vacuum tank to the HVAC module.
4. Remove the vacuum tank.

INSTALLATION PROCEDURE




1. Install the vacuum tank to the HVAC module.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: It will be required to enter the vehicle from the drivers and passenger side to install the bolts to the vacuum tank.

2. Install the bolts to the vacuum tank.

Tighten
Tighten the vacuum tank bolts to 1.5 N.m (13 lb in).




3. Connect the vacuum hoses to the vacuum tank.
4. Install the left and right side instrument panel insulator.
