Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
HVAC System - Automatic
>>
HVAC Air Delivery/Temperature Control Schematics
>>
Temperature Controls
Temperature Controls

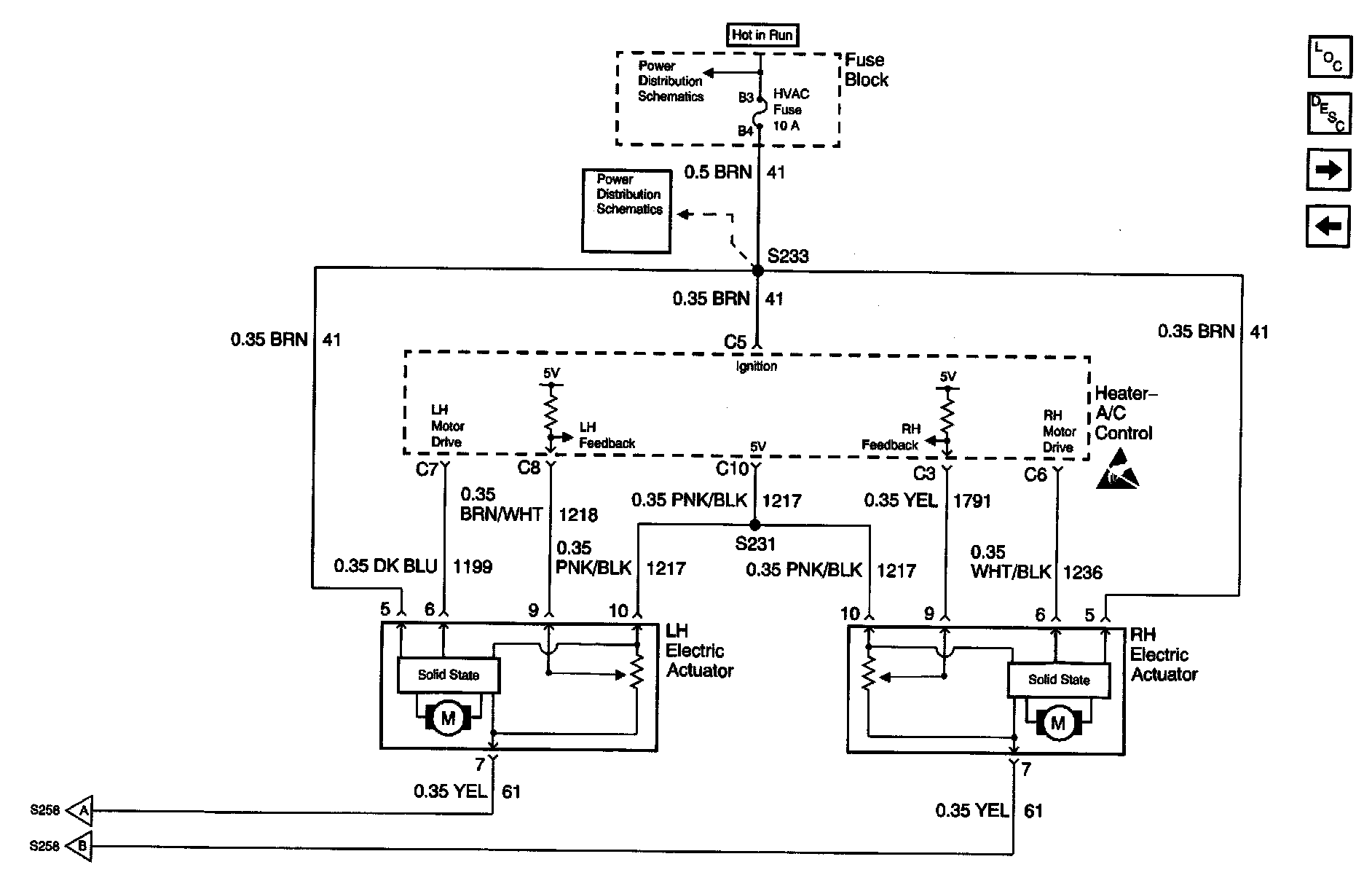

HVAC Air Delivery/Temperature Control Schematics: Temperature Controls:
