HVAC Air Delivery/Temperature Control Schematics
>>
Inputs
Inputs

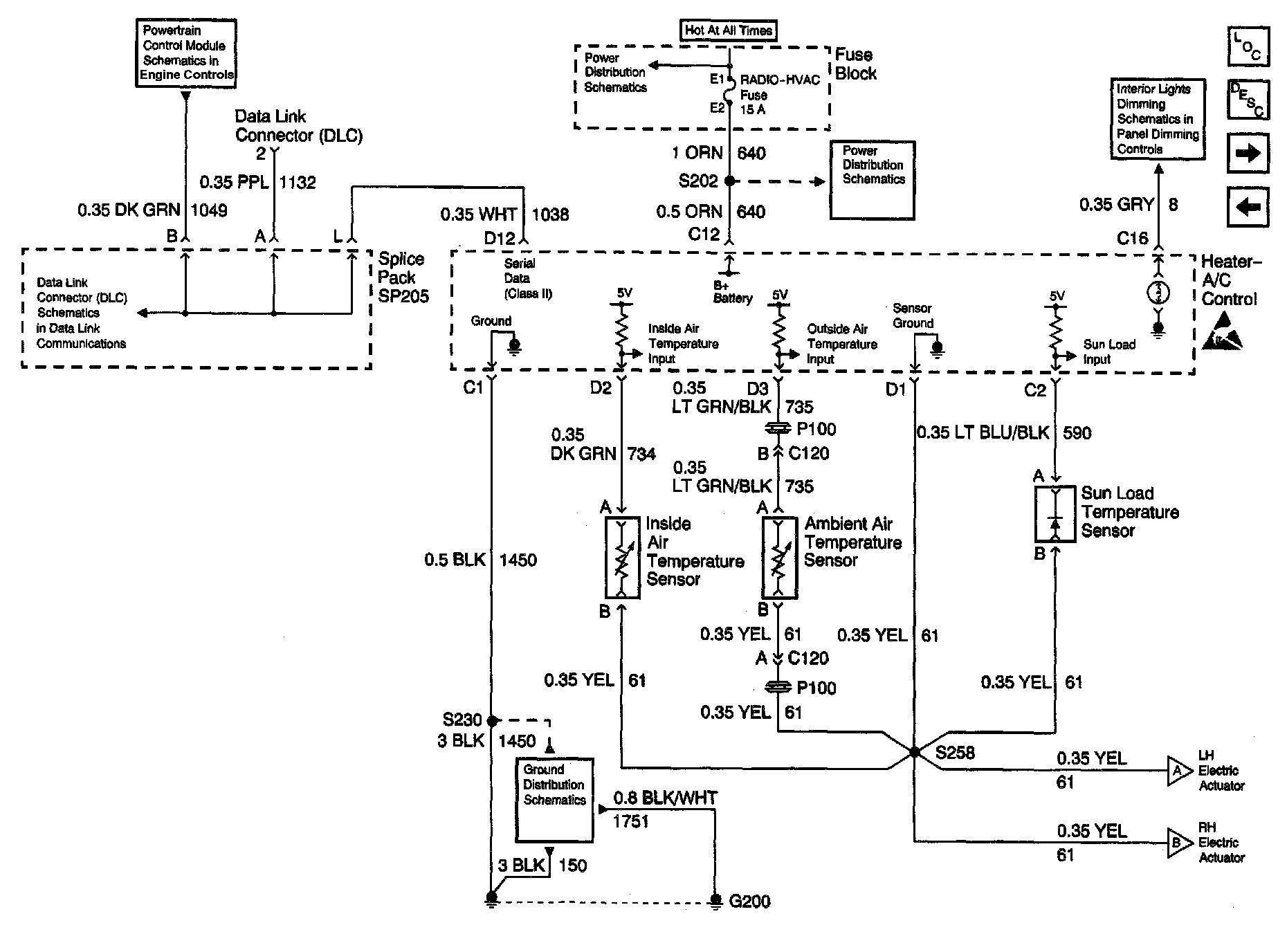

HVAC Air Delivery/Temperature Control Schematics: Inputs:
