Cabin Ventilation Grille: Service and Repair

Pressure Relief Valve Replacement

Removal Procedure

1. Open the rear compartment.
2. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Service and Repair) in Bumpers.
3. Pull back the right side rear compartment trim as needed to access the pressure relief valve. Refer toRear Compartment Trim Panel Replacement (Rear Compartment Trim Panel Replacement).




4. Use a small flat-bladed tool to remove the upper and lower retainers on the pressure release valve.

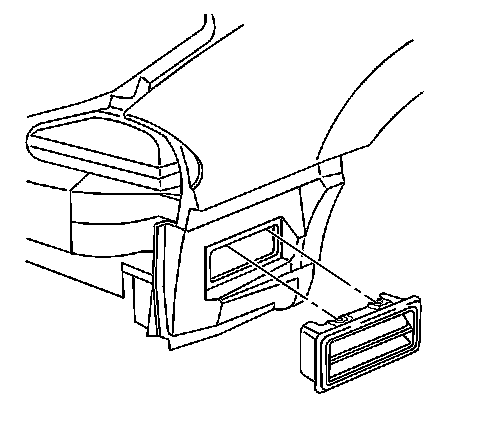

5. Remove the pressure relief valve from the right lower quarter panel.

Installation Procedure




1. Position the pressure relief valve to the right lower quarter panel.
2. Apply pressure to the pressure release valve retainers until firmly seated.
3. Install the right side rear compartment trim. Refer to Rear Compartment Trim Panel Replacement (Rear Compartment Trim Panel Replacement).
4. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Service and Repair) in Bumpers.
5. Close the rear compartment.
