Air Distribution Ducts Replacement - Auxiliary

REMOVAL PROCEDURE




1. Position the front half of the carpet aside. Refer to Carpet Replacement - Front in Interior Trim.

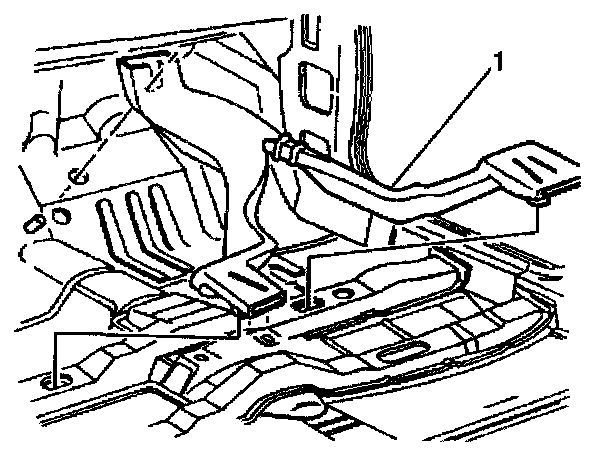

2. Release the rear floor air outlet duct (1) from the floor.
3. Disconnect the rear floor air outlet duct from the heater outlet cover.
4. Remove the rear floor air outlet duct.

INSTALLATION PROCEDURE




1. Install the rear floor air outlet duct (1).
2. Connect the rear floor air outlet duct from the heater outlet cover.
3. Position the floor duct into holes in floor reinforcement and press into place.
4. Install the front carpet into position.
