Muffler: Service and Repair

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

Notice: Refer to Catalytic Converter Movement Notice in Service Precautions.

2. Suitably support the exhaust system.

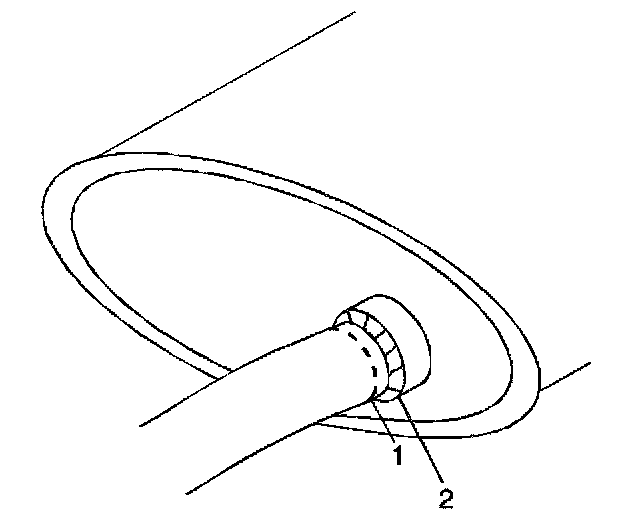

3. Cut the exhaust pipe (1) as close as is possible to the muffler weld (2).

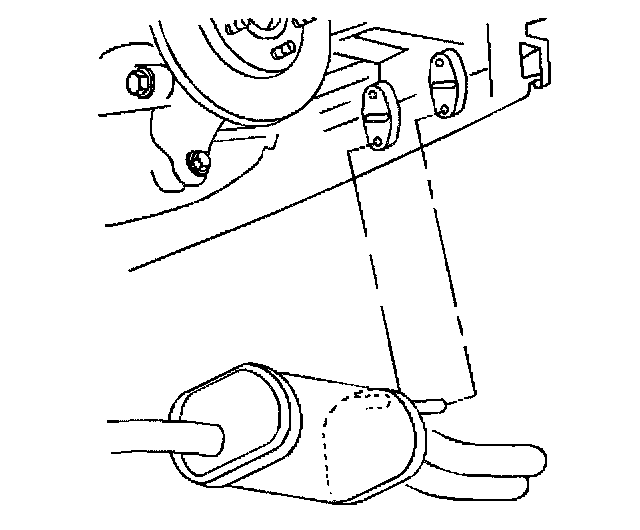

4. Disconnect the exhaust muffler rear hanger insulators from the exhaust muffler.
5. Remove the exhaust muffler.

Installation Procedure





1. Install the exhaust muffler.
2. Connect the exhaust muffler rear hanger insulators to the exhaust muffler.

Notice: Refer to Fastener Notice in Service Precautions.

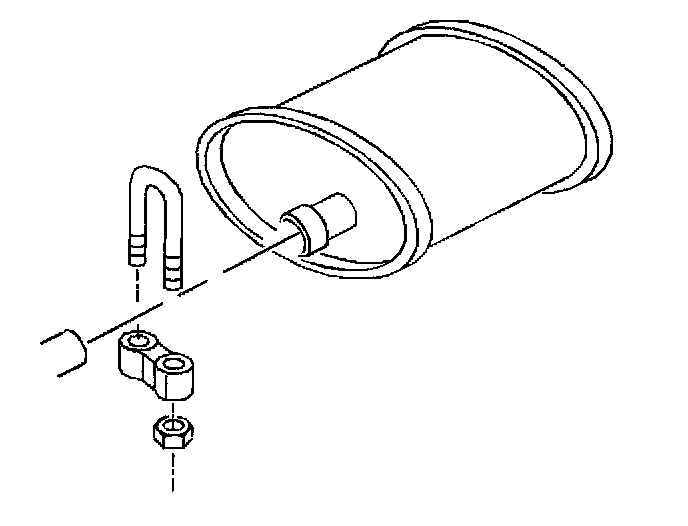

3. Install the exhaust muffler to the exhaust pipe.
Tighten the exhaust muffler inlet pipe clamp nuts to 50 Nm (37 ft. lbs.).
4. Remove the support from the exhaust system.
5. Inspect for leaks and underbody contact.
6. Lower the vehicle.
