Heat Shield: Service and Repair

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the catalytic converter. Refer to Catalytic Converter Replacement.

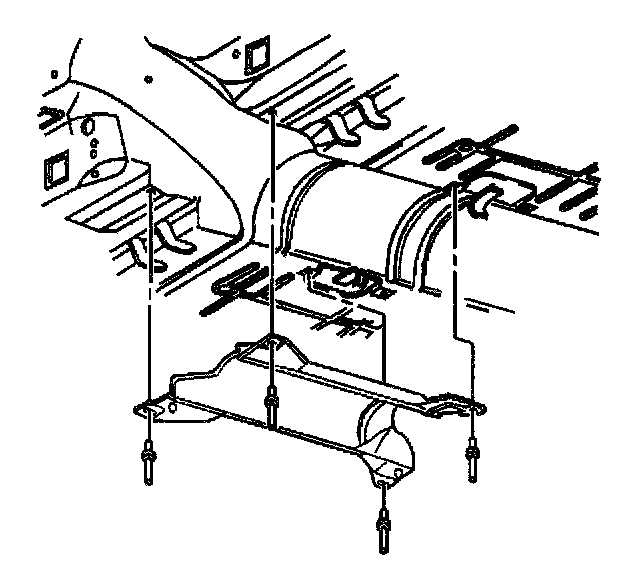

3. Remove the catalytic converter heat shield rivets.
4. Remove the catalytic converter heat shield.

Installation Procedure

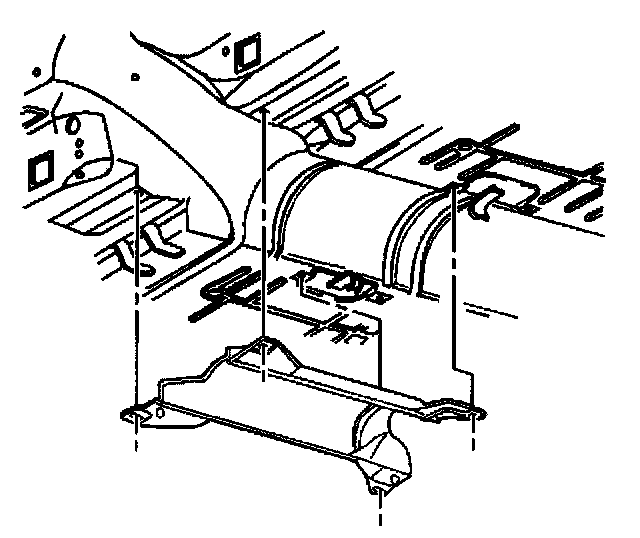

1. Install the catalytic converter heat shield.
2. Install the converter heat shield rivets.
3. Install the catalytic converter. Refer to Catalytic Converter Replacement.
4. Inspect for leaks and underbody contact.
5. Lower the vehicle.
