Converter Hanger Assembly Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

Notice: Refer to Catalytic Converter Movement Notice in Service Precautions.

2. Suitably support the exhaust system.

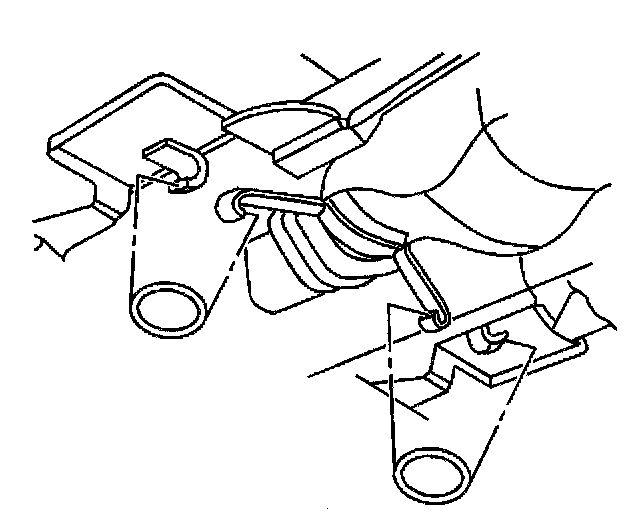

3. Remove the three-way catalytic converter hangers.
4. Inspect the three-way catalytic converter brackets for serviceability. Repair or replace as necessary.

Installation Procedure

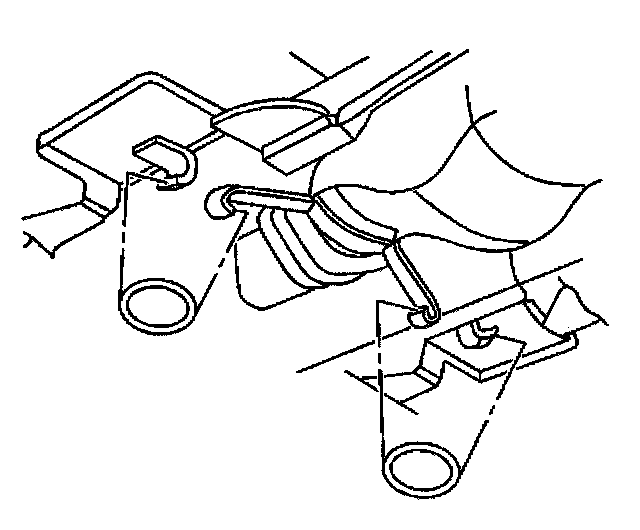

1. Install the three-way catalytic converter hangers.
2. Remove the support from the exhaust system and vehicle.
3. Inspect for leaks and underbody contact.
4. Lower the vehicle.
