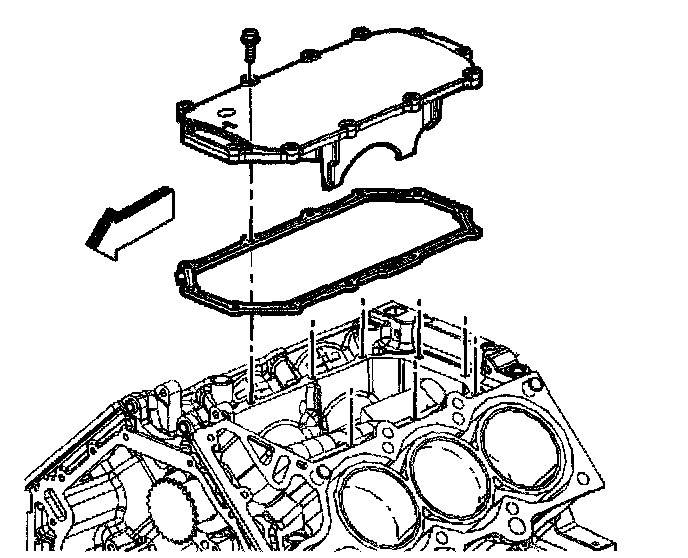

82. Balance Shaft Cover Installation

1. Place the balance shaft cover gasket in position on the cylinder block. Ensure that any remaining gasket material is removed from the cylinder block and cover.
2. Lower the balance shaft cover into the engine valley.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the balance shaft cover bolts.
Tighten the balance shaft cover bolts to 12 Nm (106 inch lbs.).
