68. Water Crossover Disassemble

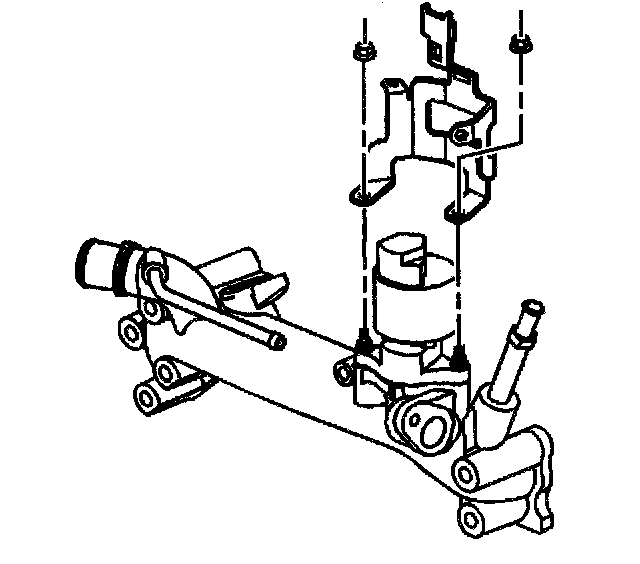

1. Remove the EGR wire harness heat shield nuts.
2. Remove the EGR wire harness heat shield.

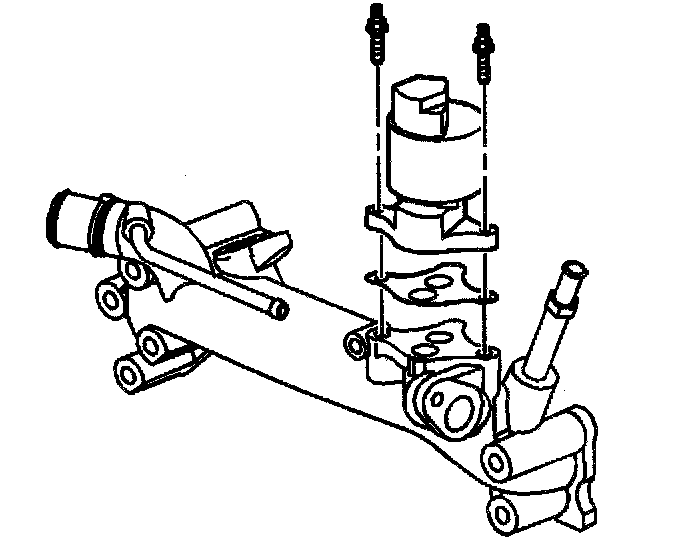

3. Remove the EGR valve studs.
4. Remove the EGR valve.
5. Remove the EGR valve gasket.
