6. Engine Flywheel Removal

^ Tools Required
- J43442 Flywheel Holder

Important: Engine flywheel and crankshaft rear oil seal removal requires adequate space for removal. Mount the engine on a suitable engine stand which will properly space the engine in order to use the J42841 to remove the crankshaft rear oil seal. If necessary remove the engine flywheel and crankshaft rear oil seal with the engine properly supported on the floor or on a bench.

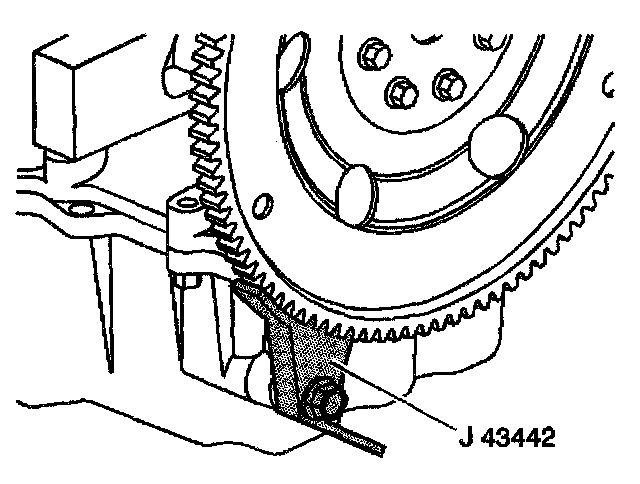

1. Remove the J43442, turn around and install the J43442.
2. Loosen the eight engine flywheel bolts.
3. Remove seven of the eight engine flywheel bolts leaving one bolt at the top of the crankshaft rotation.

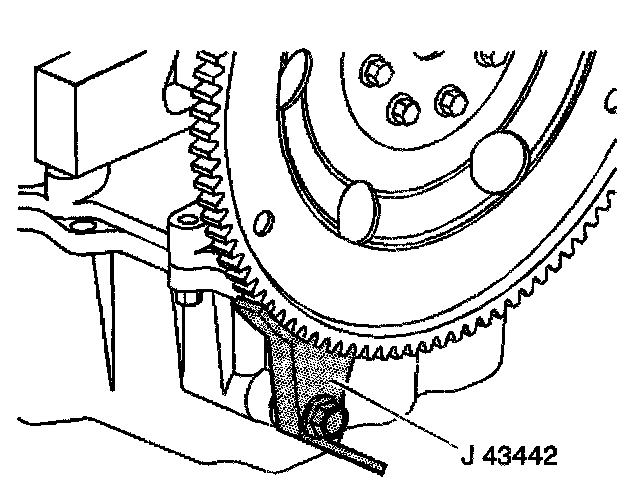

4. Remove the J43442.

Important: Do not drop the engine flywheel when removing the final bolt.

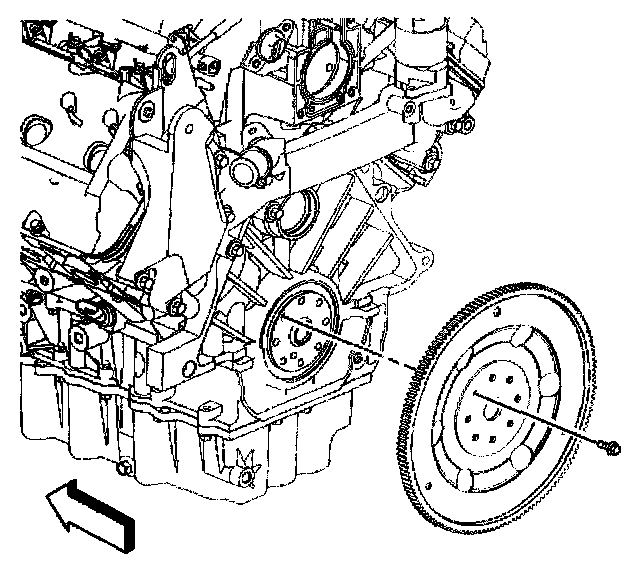

5. Grip the engine flywheel and remove the remaining bolt.
