31. Oil Pump Removal

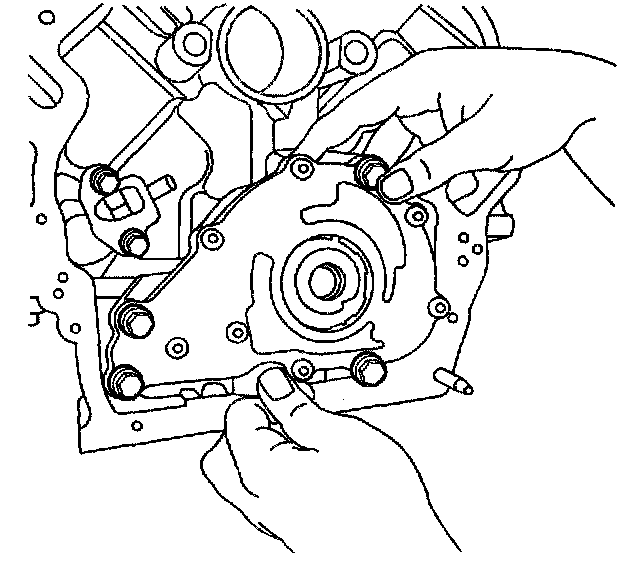

1. Remove the four oil pump assembly bolts identified by the larger head size.

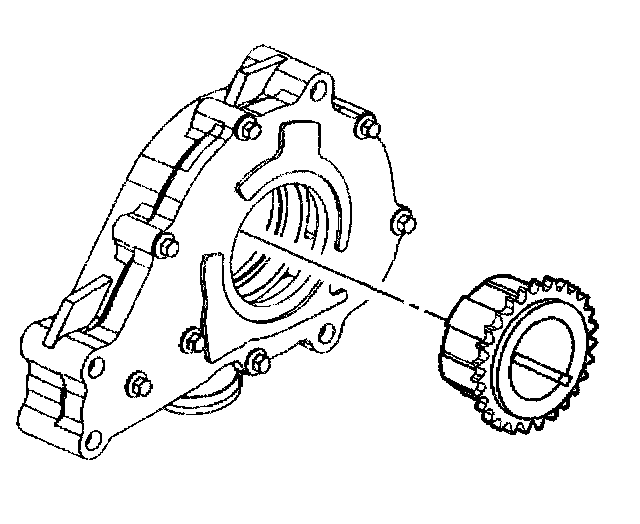

2. Slide the oil pump assembly off the nose of the crankshaft with the drive sprocket in place.





3. Remove the crankshaft sprocket from the oil pump assembly.
4. Wrap the oil pump in a towel for safe, clean storage until inspection or assembly is necessary.
