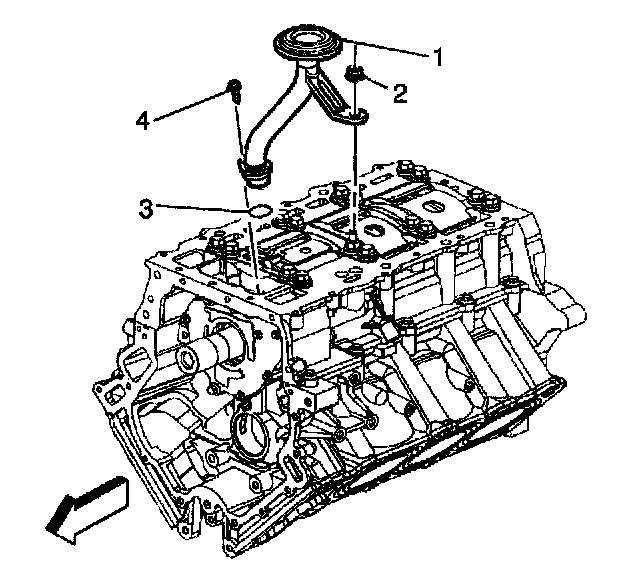

30. Oil Pump Suction Pipe and Screen Assembly Removal

1. Remove the oil pump pipe and screen nut (2) from the main bearing stud.
2. Remove the bolt (4) from the oil pump.
3. Remove the oil pump pipe and screen (1).
4. Remove and discard the oil pump pipe and screen O-ring (3).
