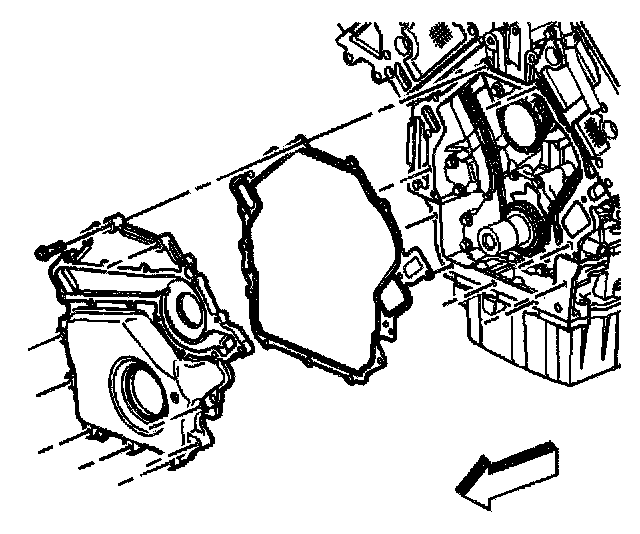

17. Engine Front Cover Removal

1. Remove the ten front cover perimeter bolts.
2. Remove the front cover and the gasket. Make sure you do not damage the sealing surface. Some of the gasket material may remain on the engine block.
3. Remove the remaining gasket material from the front cover and engine block using a plastic scraper.
