Oil Pump Pipe and Screen Assembly Replacement

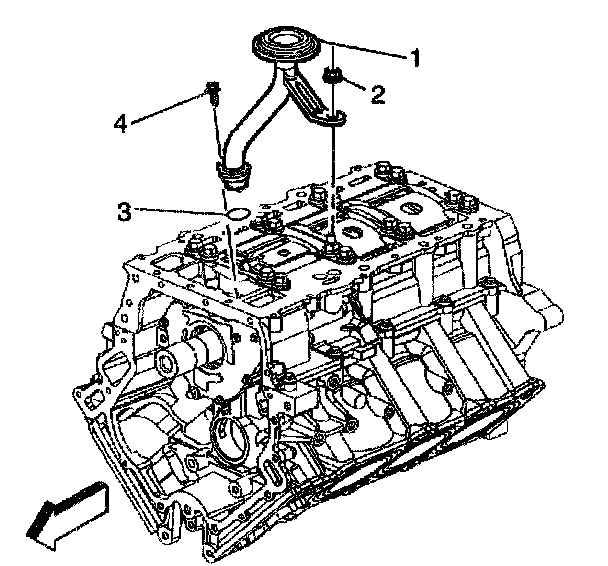

Removal Procedure





1. Remove the oil pan. Refer to Oil Pan Replacement.
2. Remove the oil pump pipe and screen nut (2) from the main bearing stud.
3. Remove the bolt (4) from the oil pump.
4. Remove the oil pump pipe and screen (1).

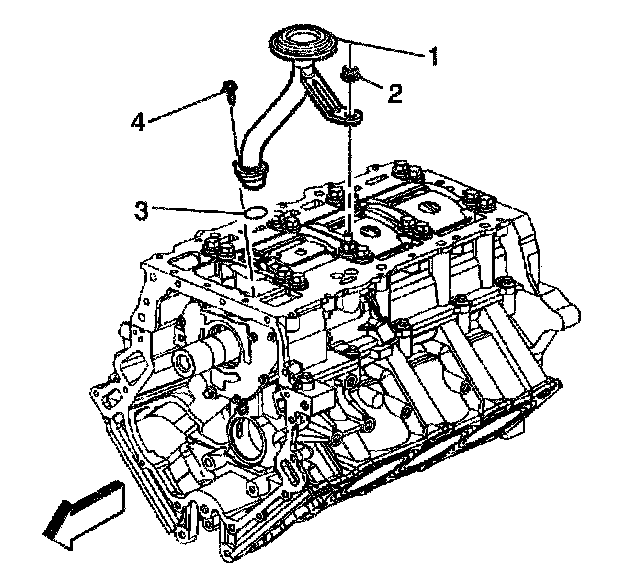

Installation Procedure





1. Make sure the new 0-ring sea[ on the tube end is in place.
2. Press the tube end into the oil pump.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolt (4) into the oil pump.
Tighten the bolt to 10 Nm (89 inch lbs.).
4. Place the tab on the stud end main bearing bolt.
5. Install the nut (2) on the stud.
Tighten the nut to 10 Nm (89 inch lbs.).
6. Install the oil pan. Refer to Oil Pan Replacement.
