Radiator Hose Replacement - Inlet

Removal Procedure

^ Tools Required
- J38185 Hose Clamp Pliers





1. Partially drain the cooling system. Refer to Draining and Filling Cooling System.
2. Remove the diagonal brace. Refer to Brace Replacement - Sheet Metal Diagonal in Body and Frame.

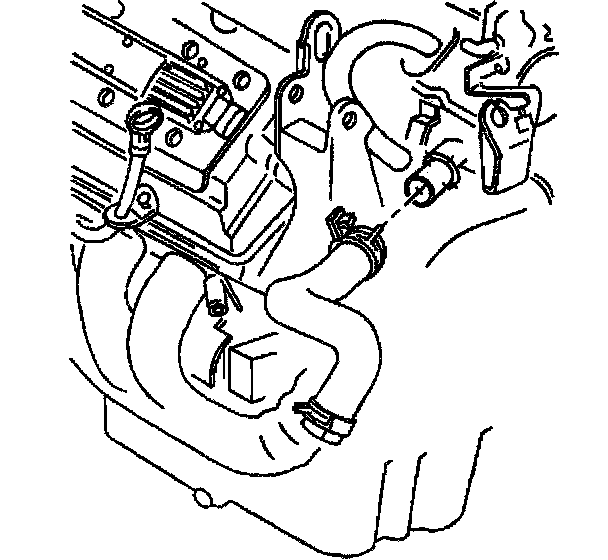

3. Use J38185 in order to remove the inlet hose clamp from the radiator.
4. Disconnect the inlet hose from the radiator.

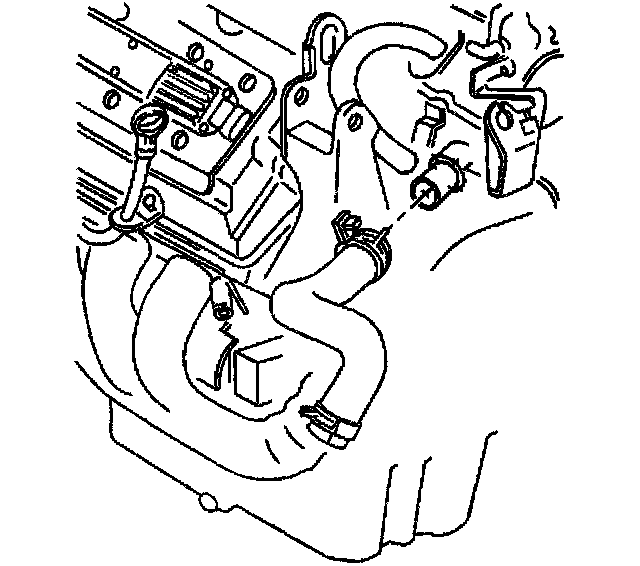

5. Remove the inlet hose clamp from the water crossover using the J38185.
6. Disconnect the inlet hose from the water crossover.
7. Remove the inlet hose.

Installation Procedure

^ Tools Required
- J38185 Hose Clamp Pliers





1. Install the inlet hose.
2. Connect the inlet hose to the water crossover.

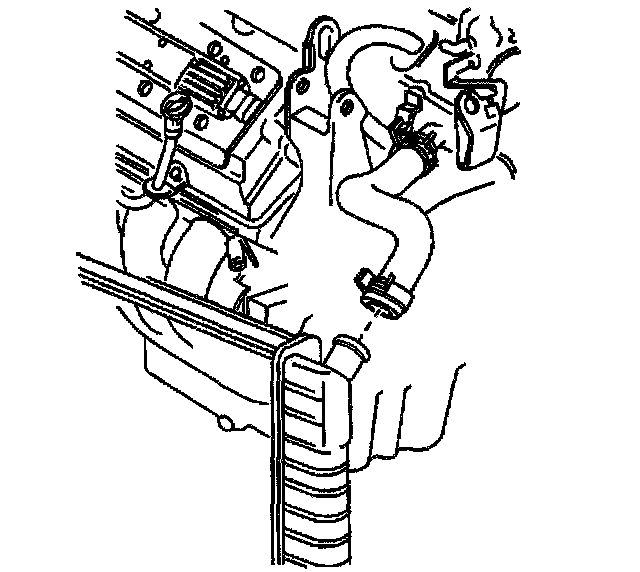

3. Use J38185 in order to install the inlet hose clamp to the radiator.





4. Connect the inlet hose to the radiator.
5. Install the inlet hose clamp to the radiator using the J38185.
6. Install the diagonal brace. Refer to Brace Replacement - Sheet Metal Diagonal in Body and Frame.
7. Fill the cooling system. Refer to Draining and Filling Cooling System.
8. Inspect for leaks.
