Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Windshield Washer Switch
Windshield Washer Switch

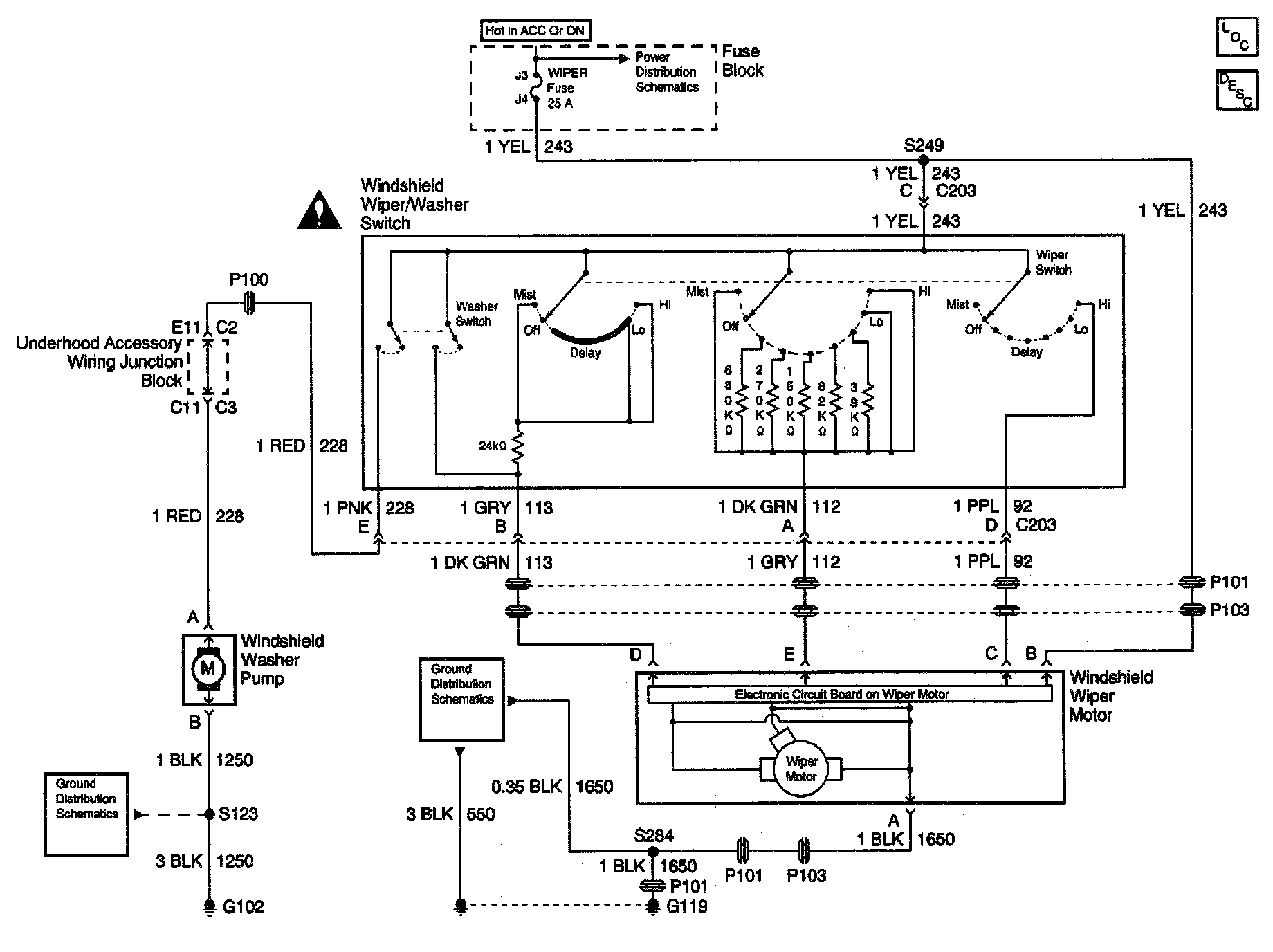

Wiper/Washer System (Pulse) Schematics:
