Power, Ground, Radio Antenna Module and Remote CD Changer
Power, Ground, Radio Antenna Module and Remote CD Changer

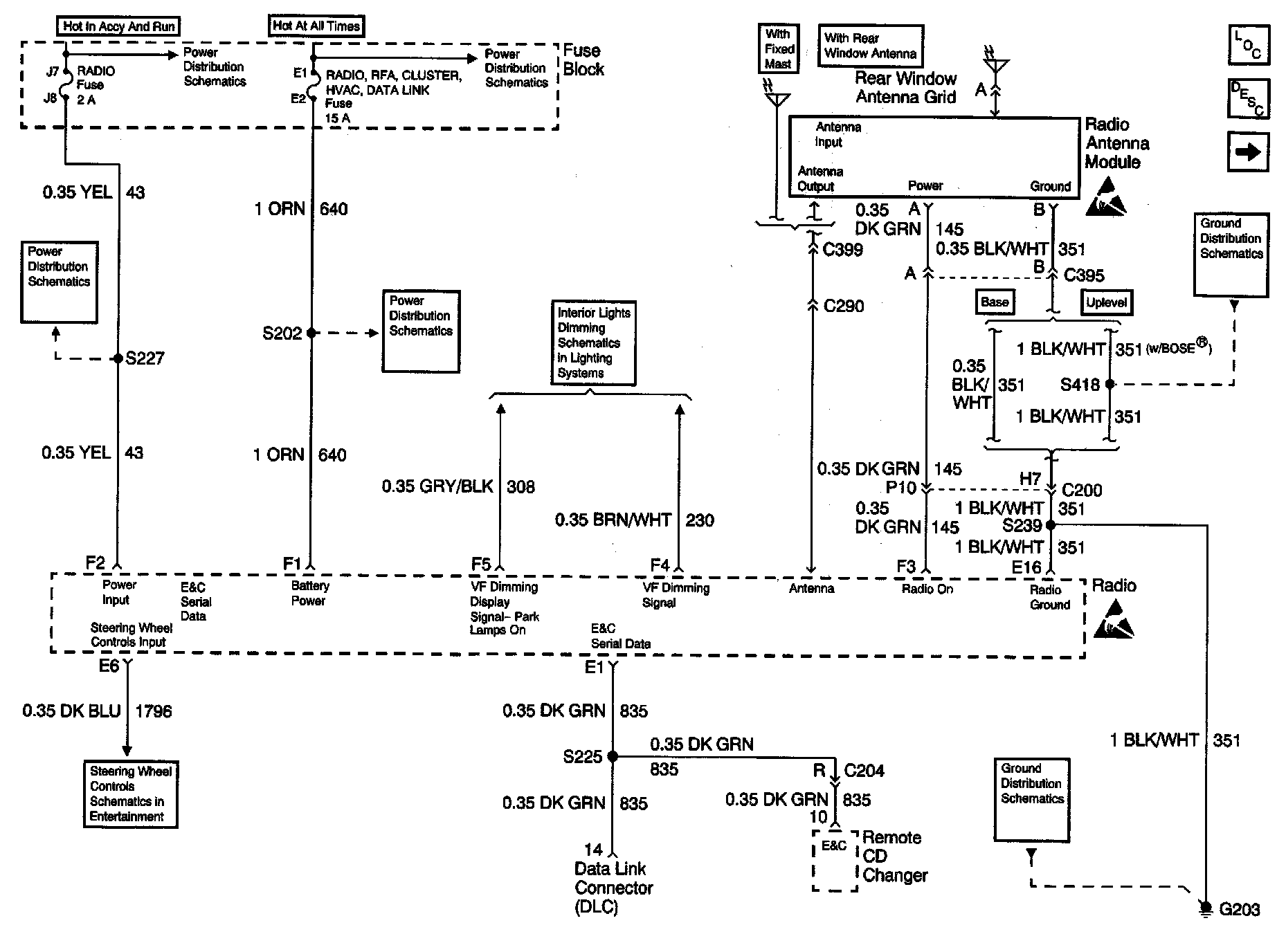

Radio/Audio System Schematics: Power, Ground, Radio Antenna Module And Remote CD Changer:
