A/C Pressure Switch, TPS, MAP, ECT and IAT Sensors
A/C Pressure Switch, TPS, MAP, ECT and IAT Sensors

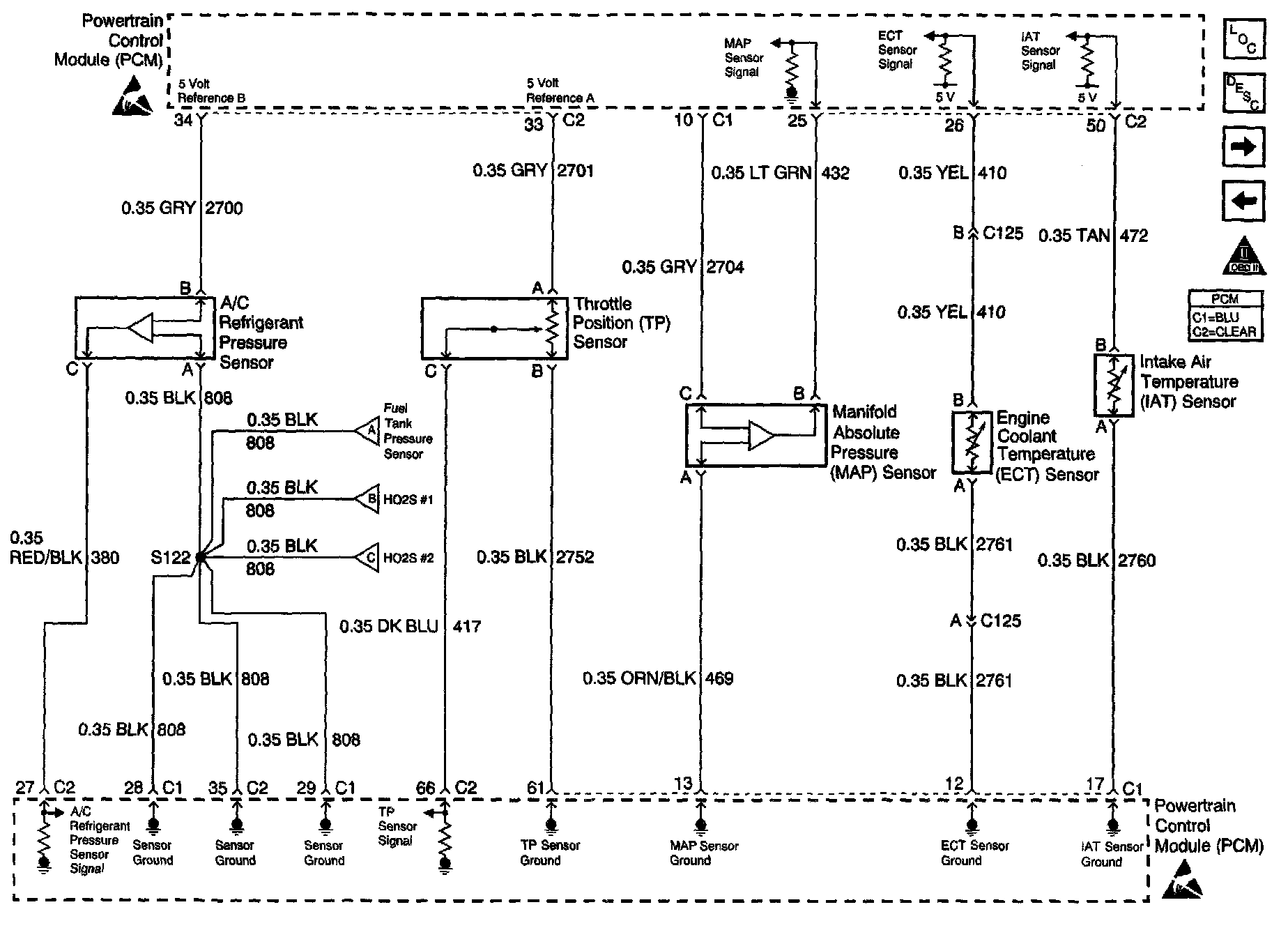

Engine Controls Schematics: A/C Pressure Switch, TPS, MAP, ECT and IAT:
