Home
>>
Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster Schematics
>>
Brake Fluid Level Indicator Switch Input
Brake Fluid Level Indicator Switch Input

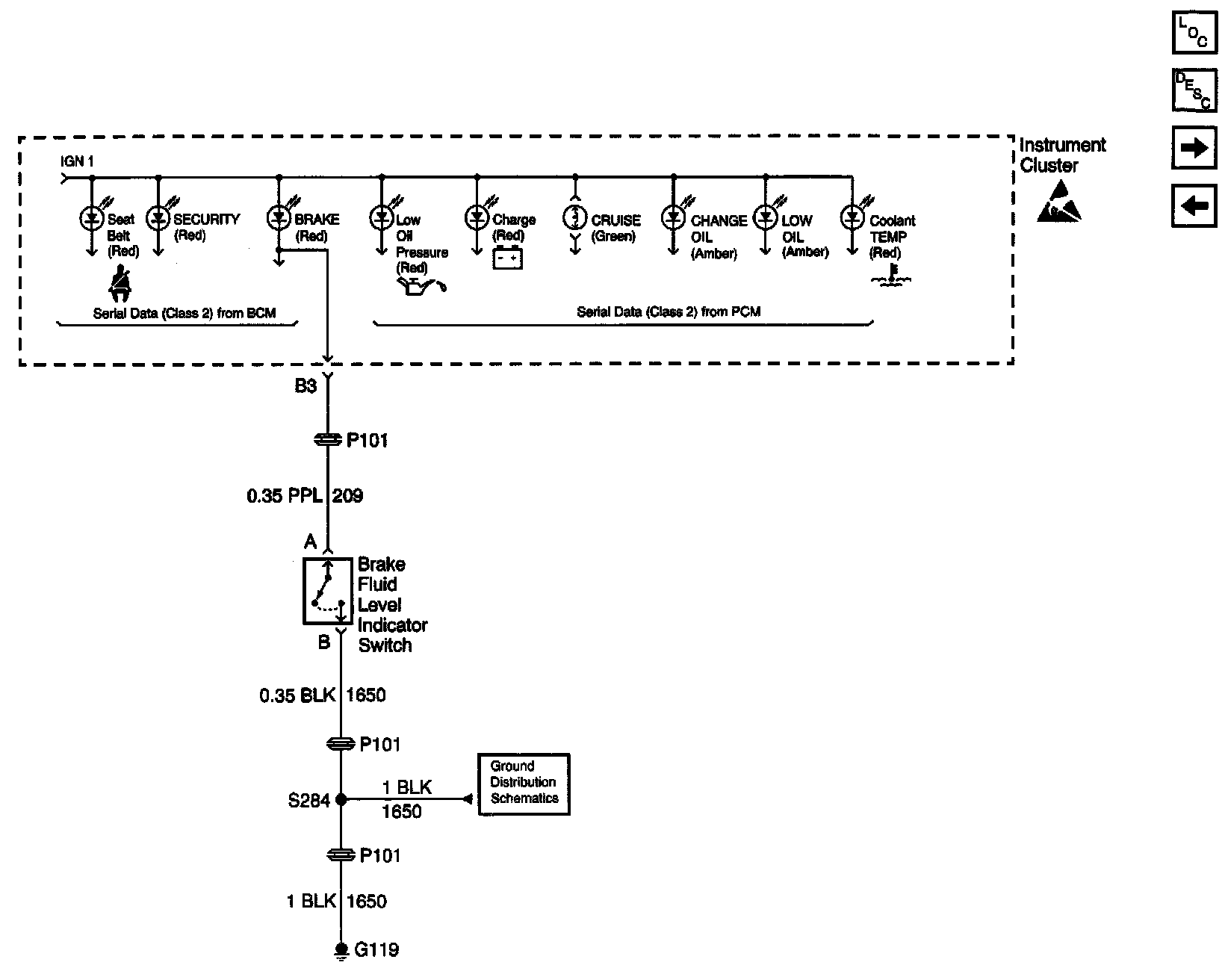

Instrument Cluster Schematics: Brake Fluid Level Indicator Switch Input:
