Heated Glass Element
>>
Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics

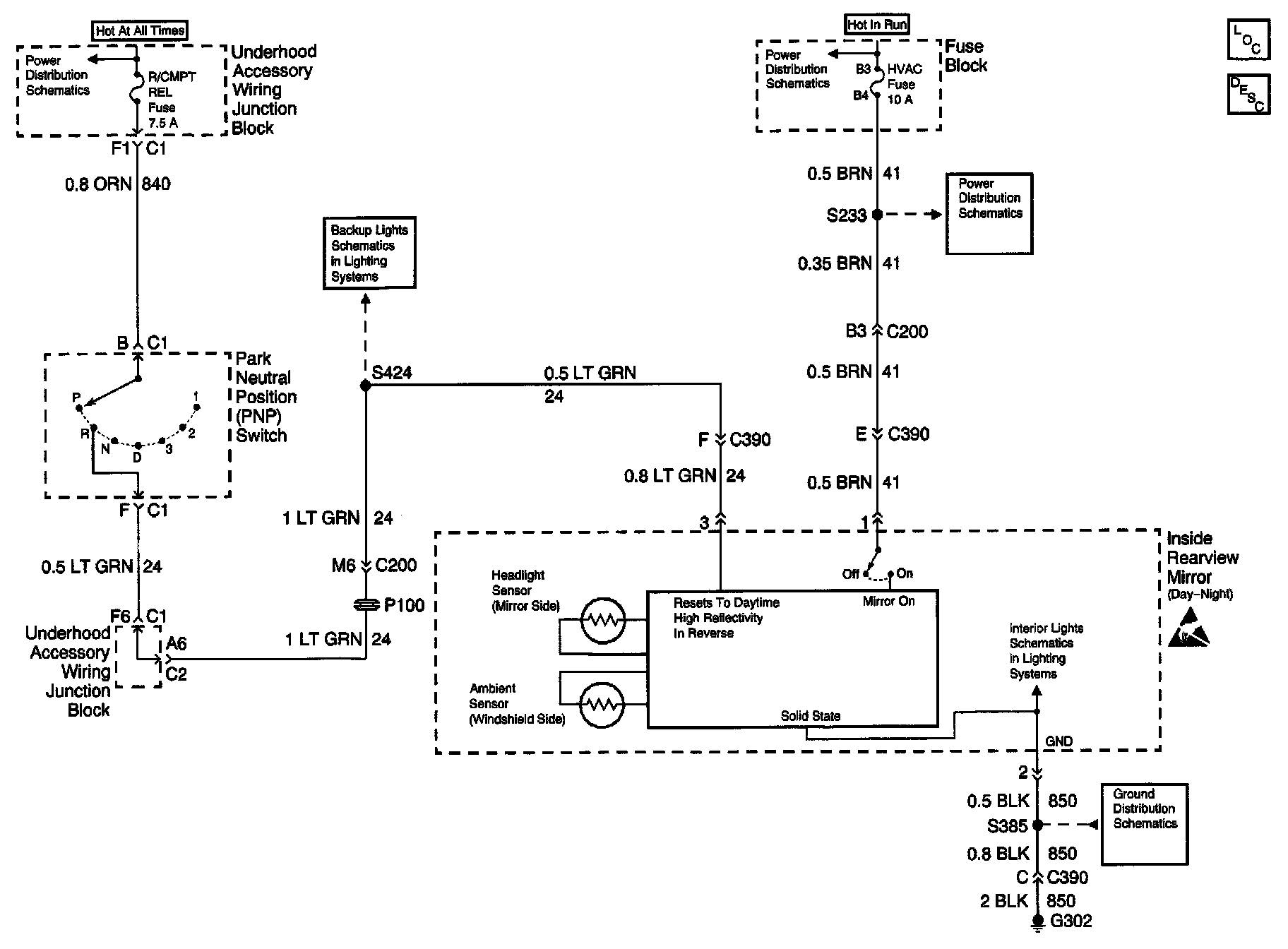

Automatic Day-Night Mirrors Schematics:
