Instrument Cluster Ind, Tract Control Sys, and Serial Data
Instrument Cluster Ind, Tract Control Sys, and Serial Data

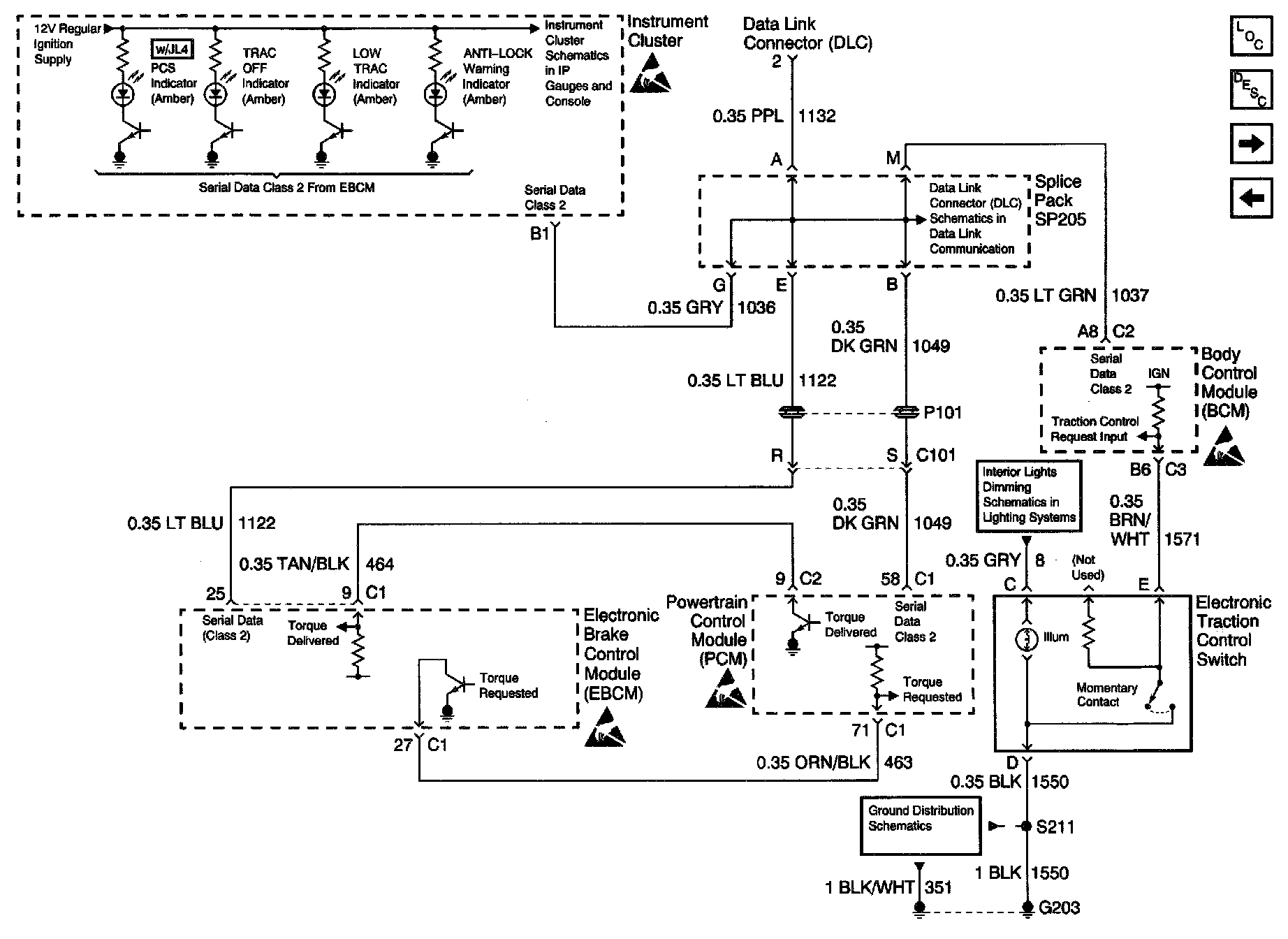

ABS Schematics: Instrument Cluster Indicators, Traction Control System, And Serial Data:
