Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
Serial Data, Seat Belt Switch Input
Serial Data, Seat Belt Switch Input

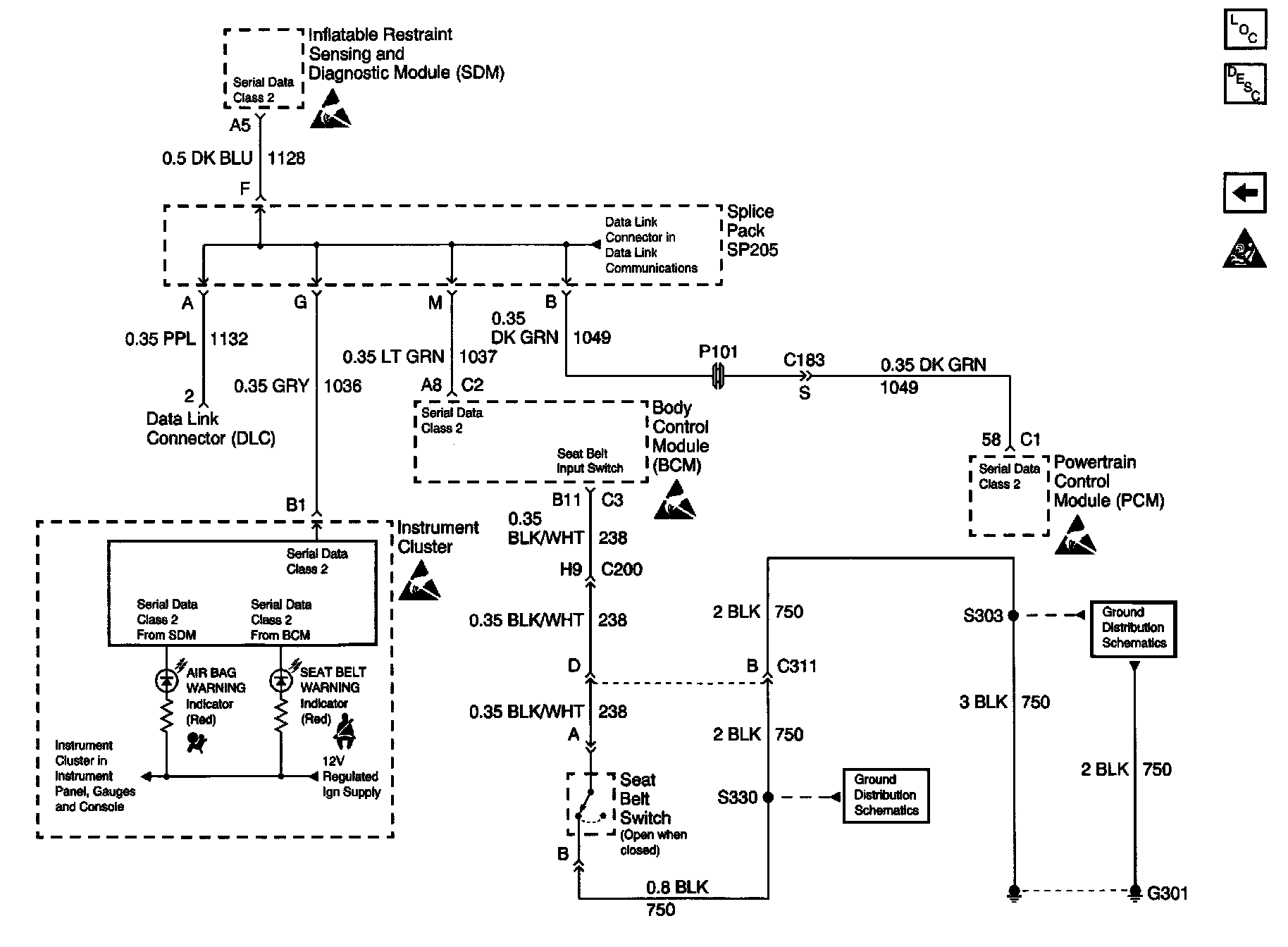

SIR Schematics: Serial Data, Seat Belt Switch Input:
