Multiple Junction Connector
>>
C200 - C299
>>
C200
C200

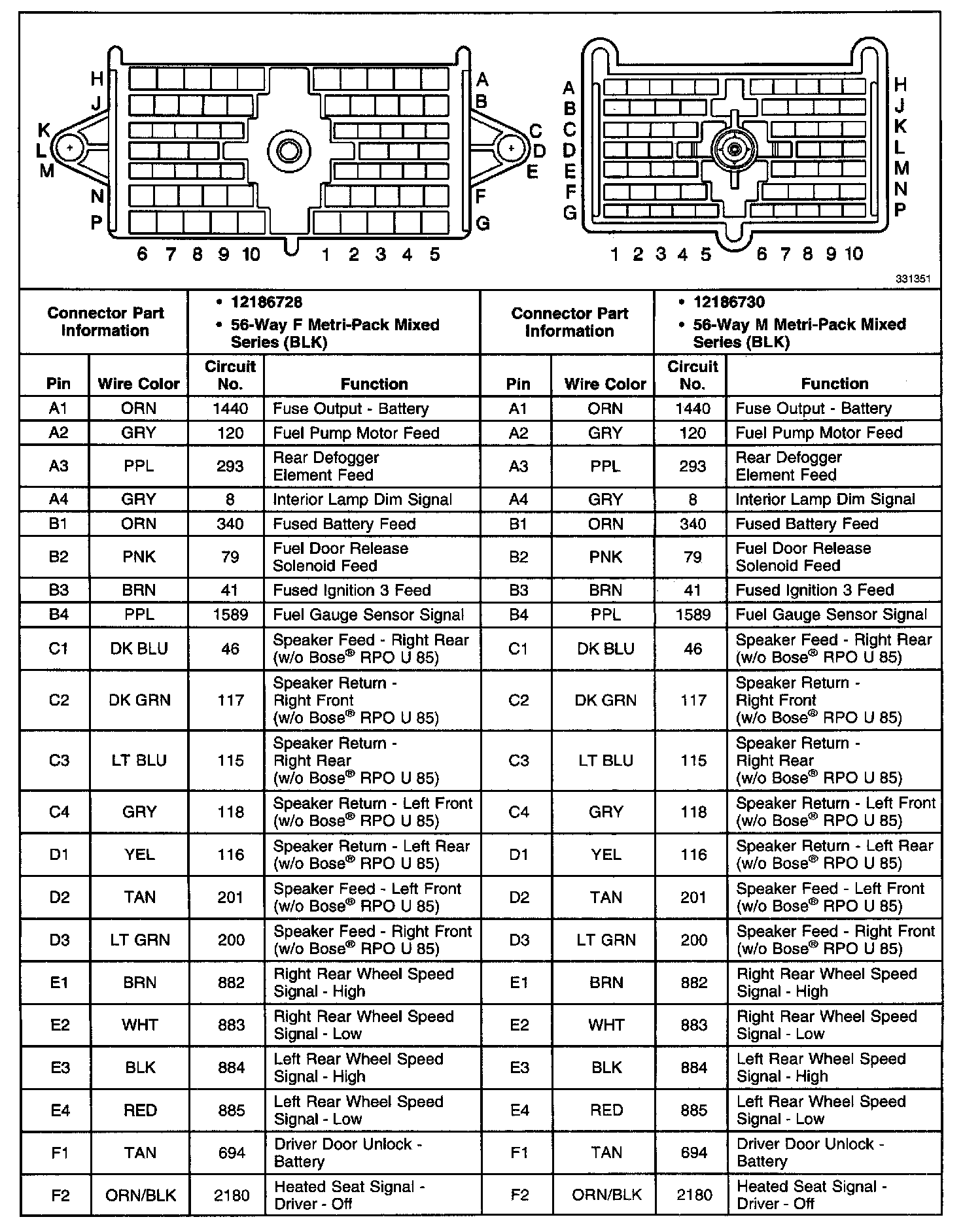

In-line Connector C200 (Part 1 Of 3):

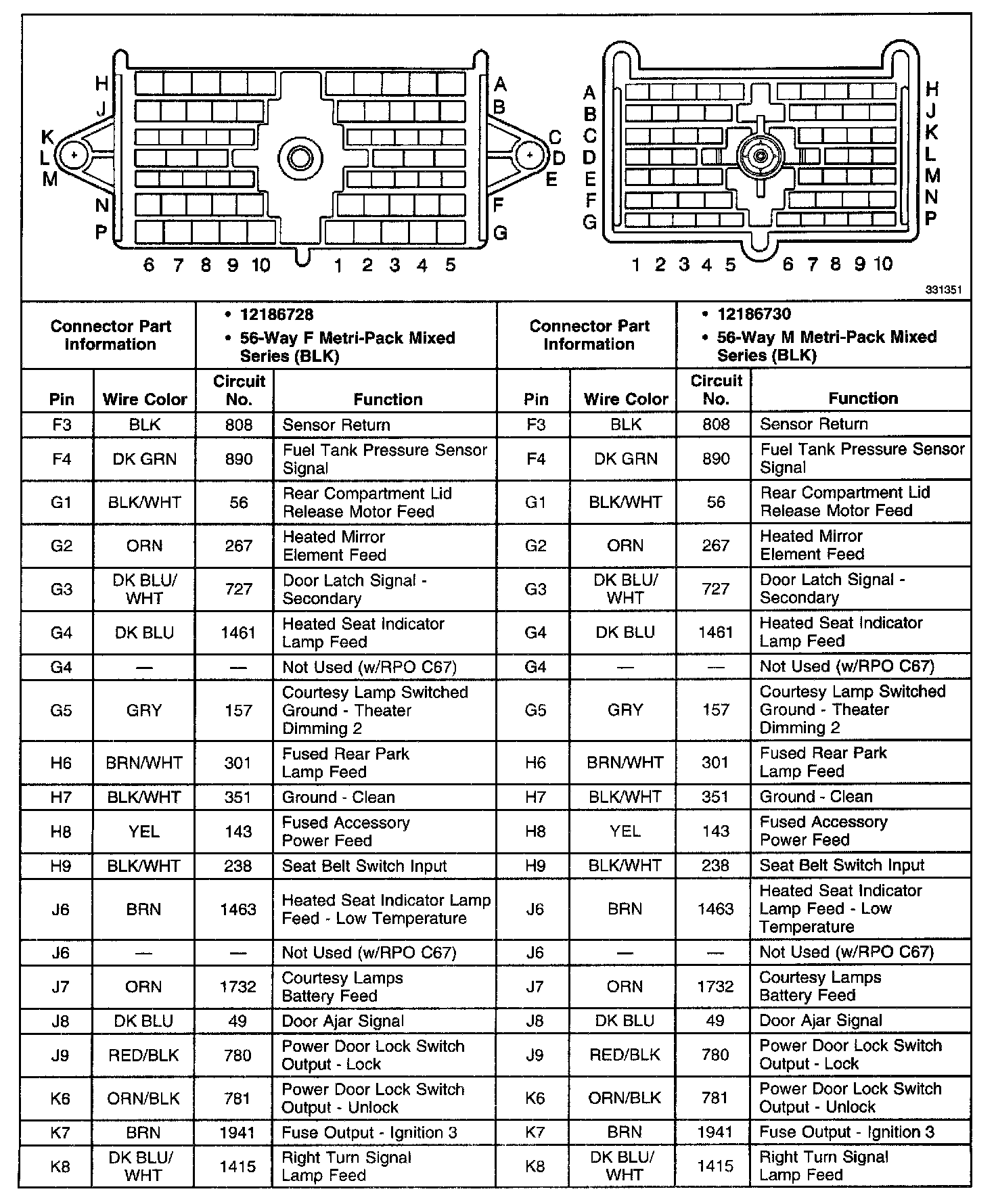

In-line Connector C200 (Part 2 Of 3):

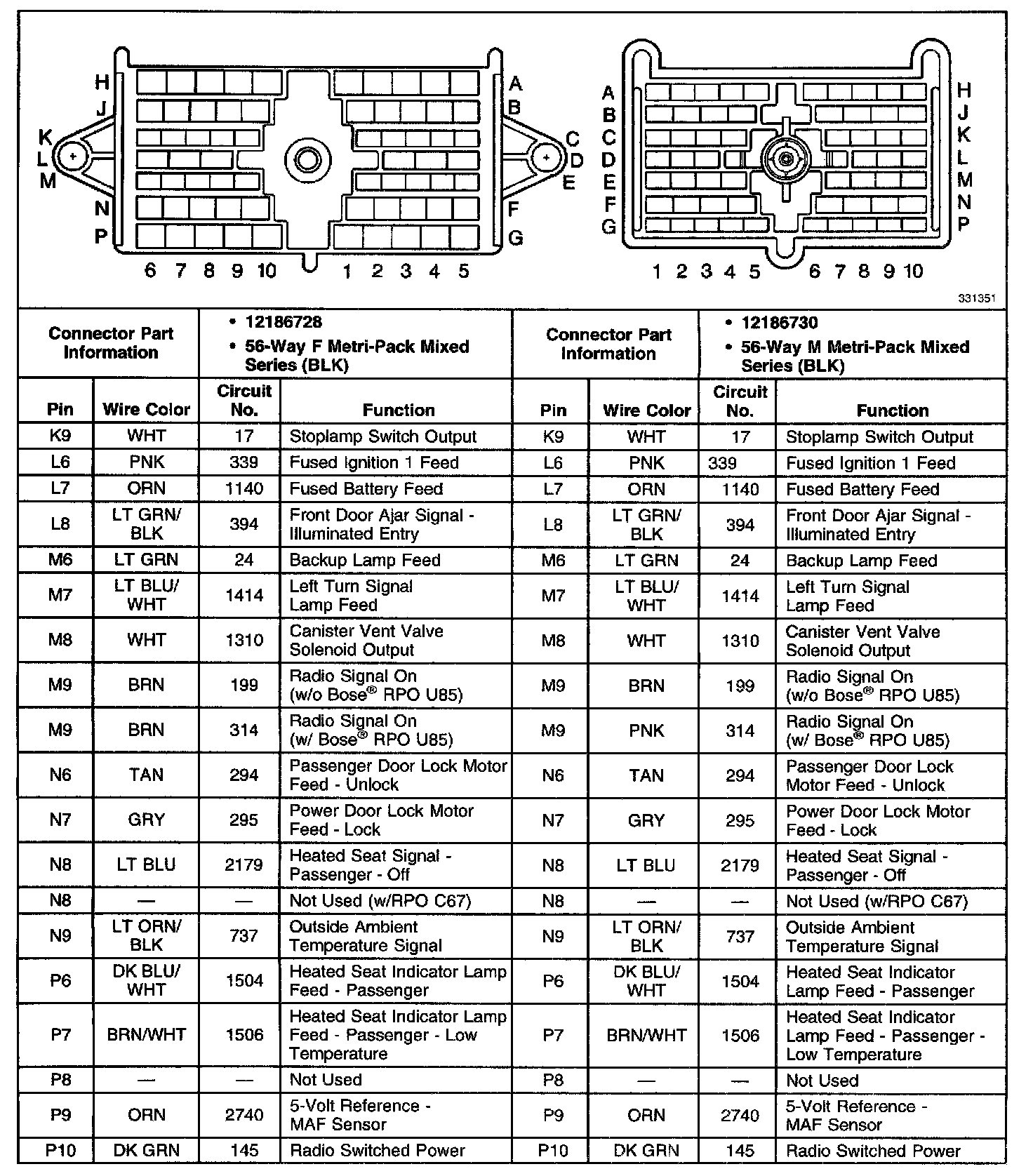

In-line Connector C200 (Part 3 Of 3):
