Parking Brake Shoe: Service and Repair

Removal Procedure





1. Remove the rear caliper bracket.
2. Remove the rear rotor.
3. Remove the rear wheel hub.

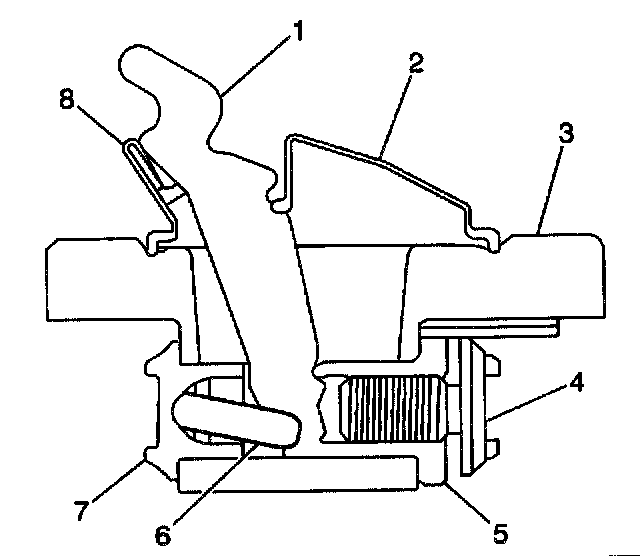

4. Remove the parking brake actuator (5). Refer to Park Brake Actuator Replacement.

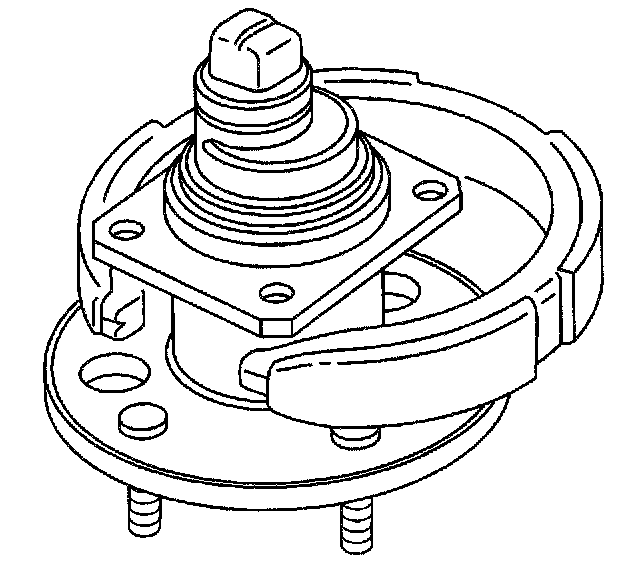

5. Remove the rear park brake shoe (2).

Installation Procedure

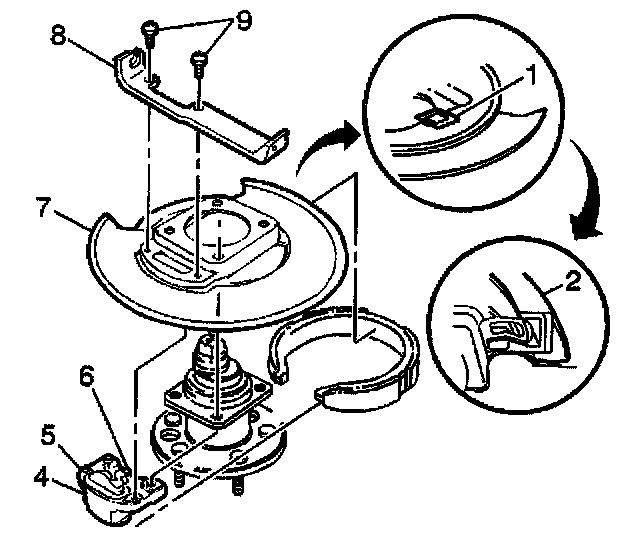

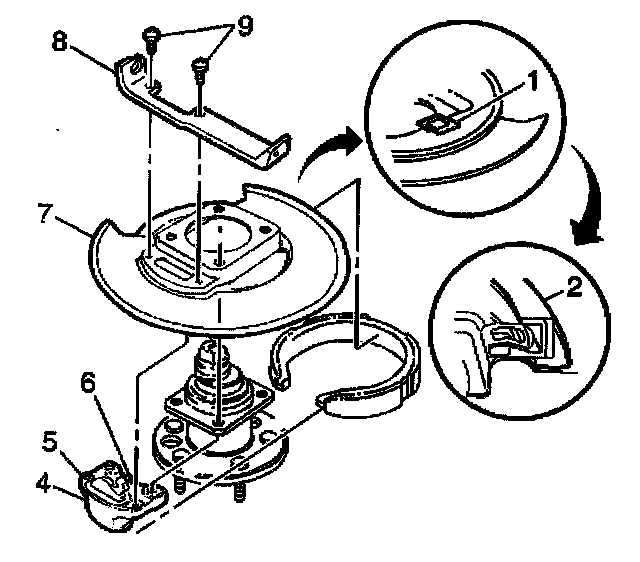

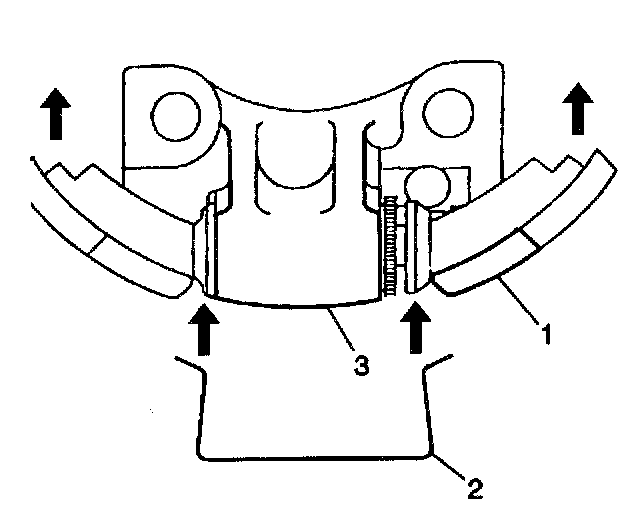

Important: Ensure that the shoe (1) engages the park brake actuator. Shipping clip (2) should slip off when installing shoe.





1. Install the rear park brake shoe.





2. Install the parking brake actuator. Refer to Park Brake Actuator Replacement.





3. Install the rear wheel hub.
4. Adjust the rear parking brake shoe. Refer to Park Brake Cable Service/Adjustment.
5. Install the rear rotor.
6. Install the rear caliper bracket.
7. Adjust the park brake shoe. Refer to Park Brake Shoe Adjustment.
