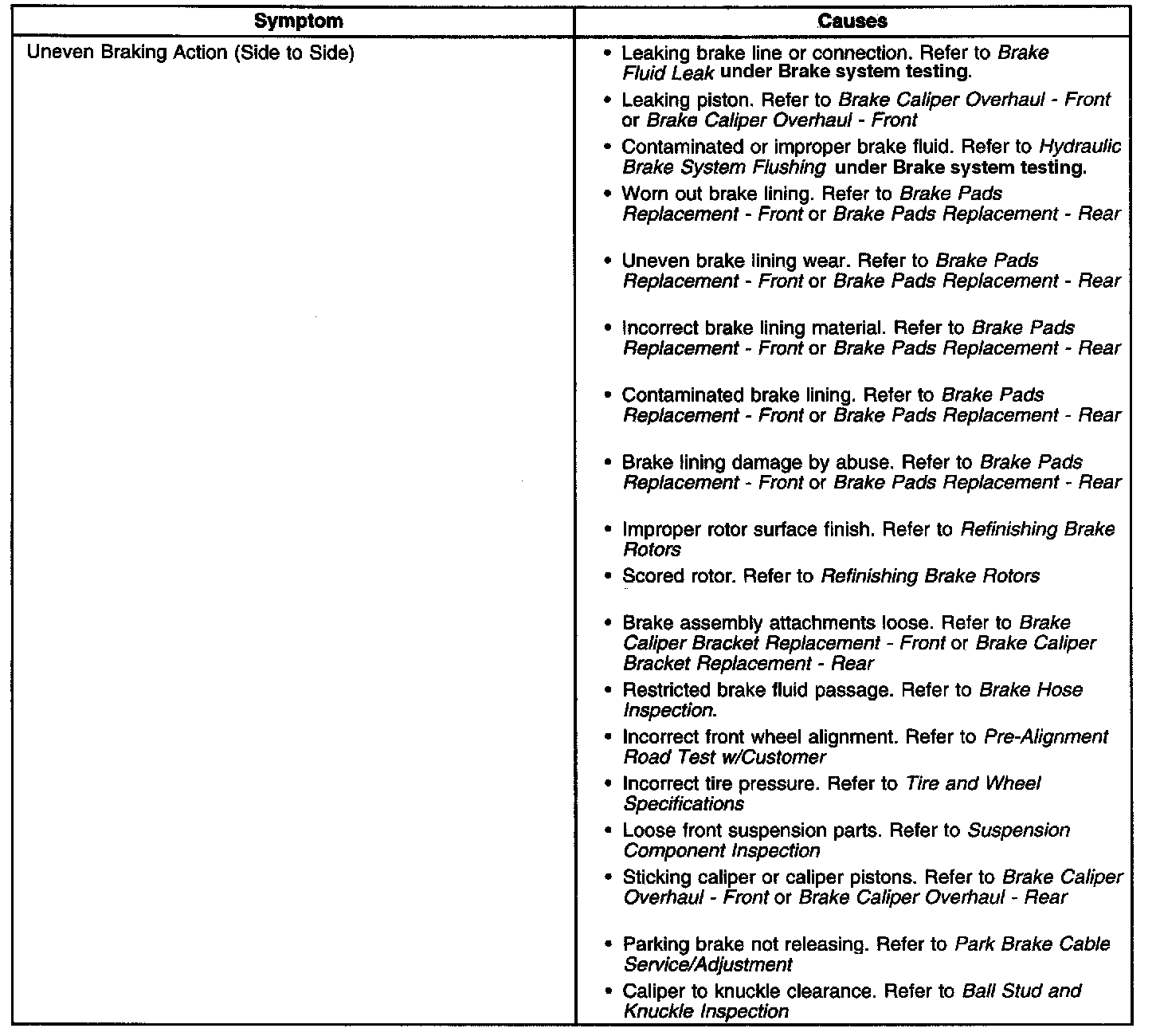

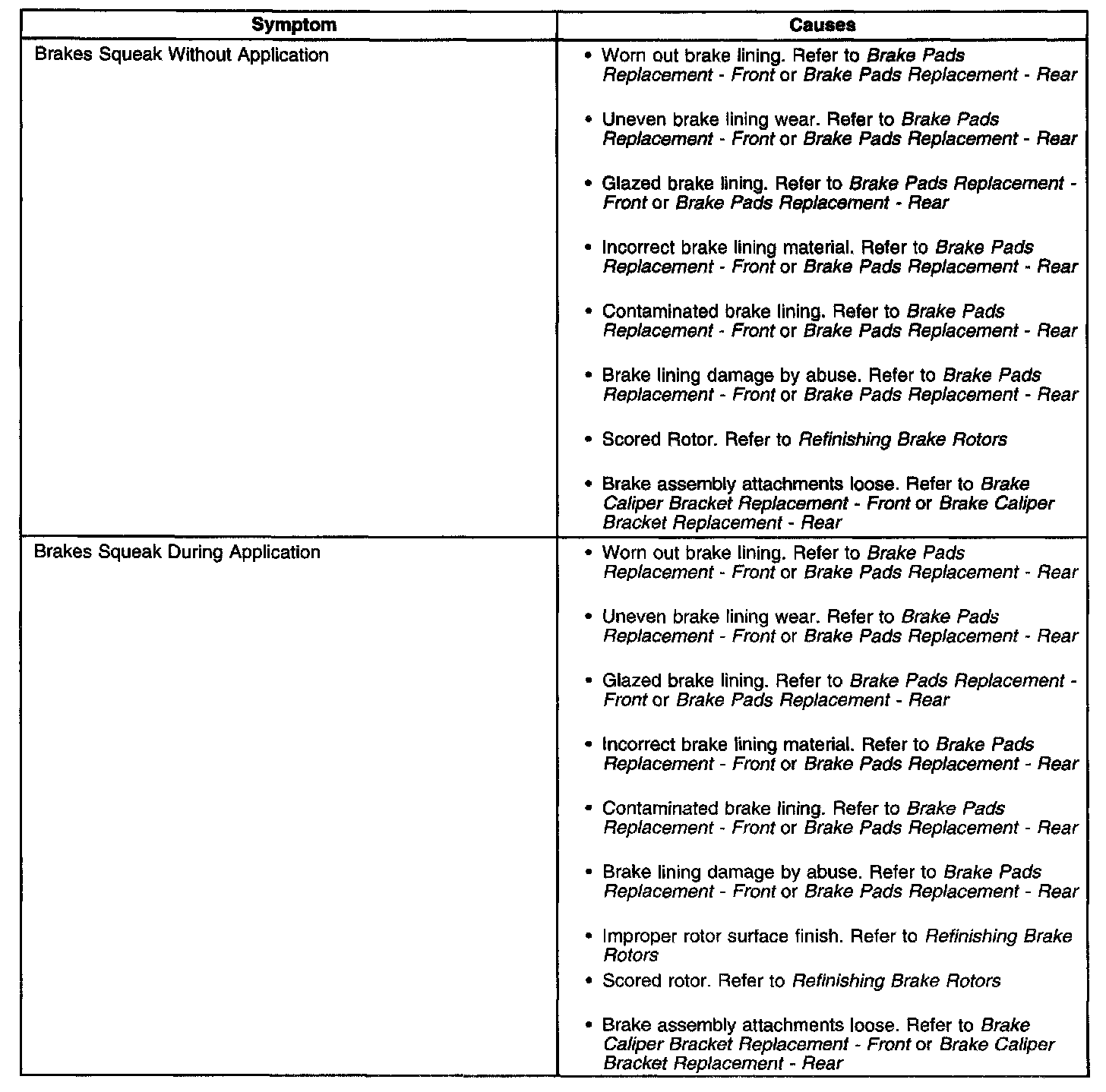

Diagnostic Charts

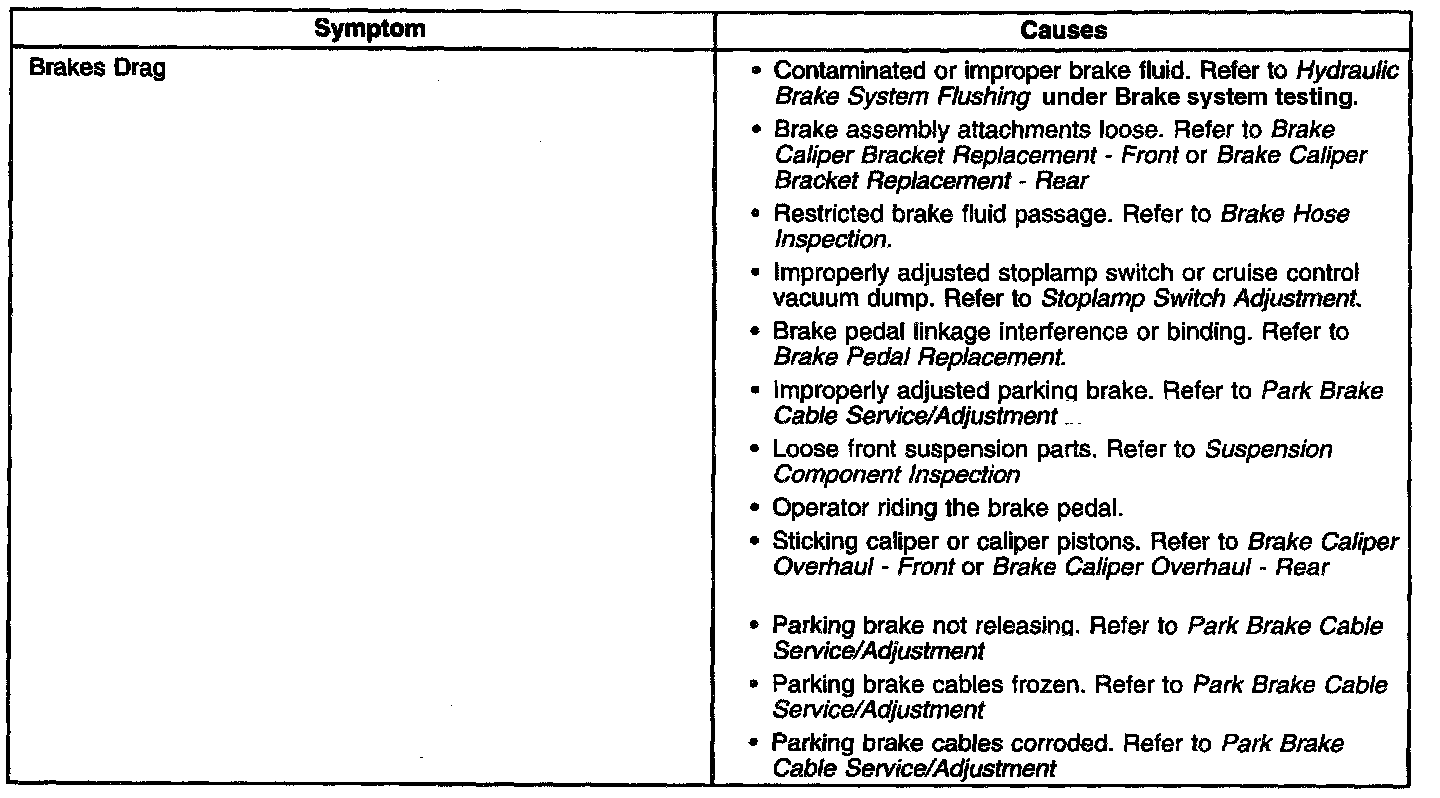

Part 1 of 10

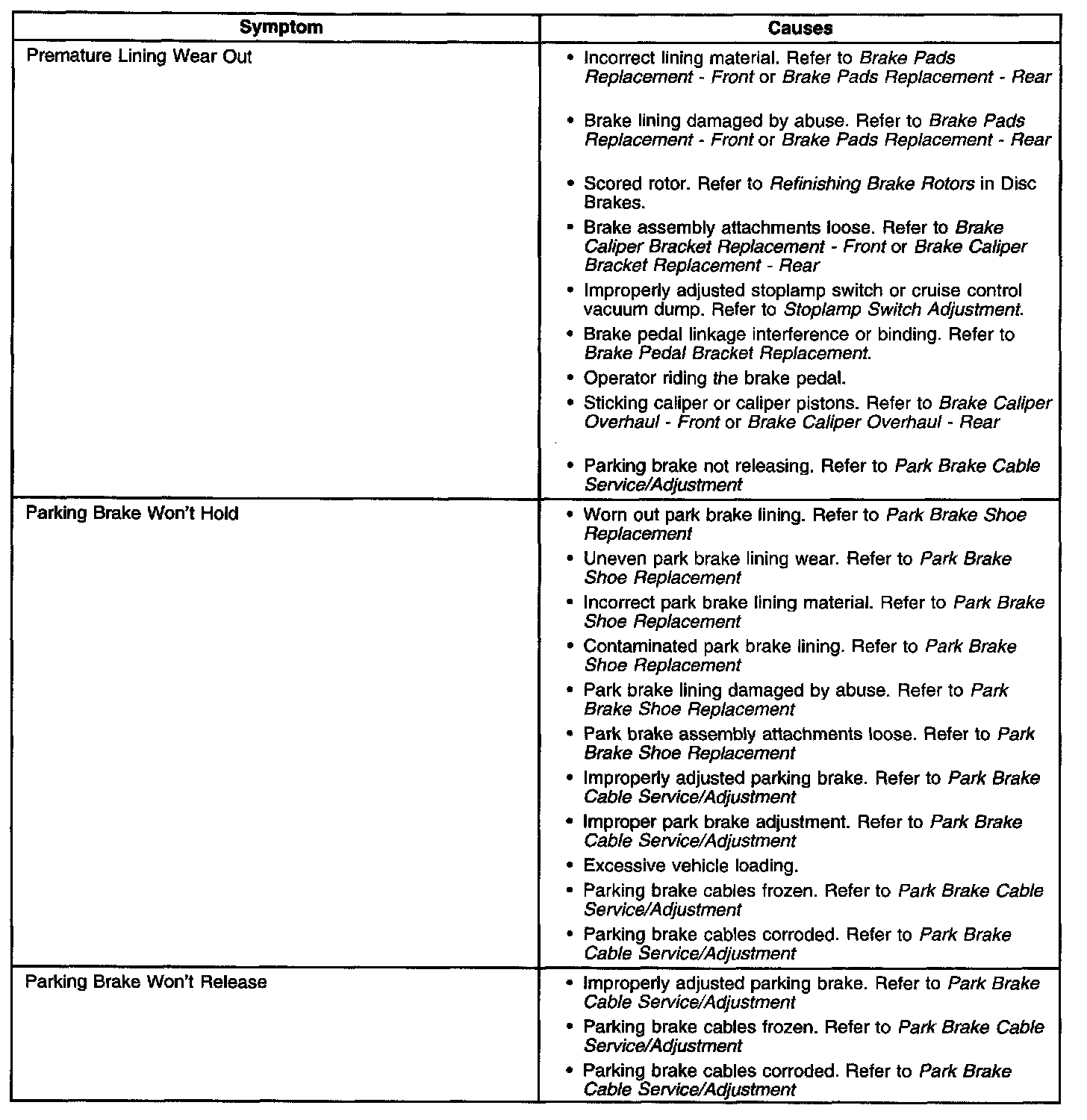

Part 2 of 10

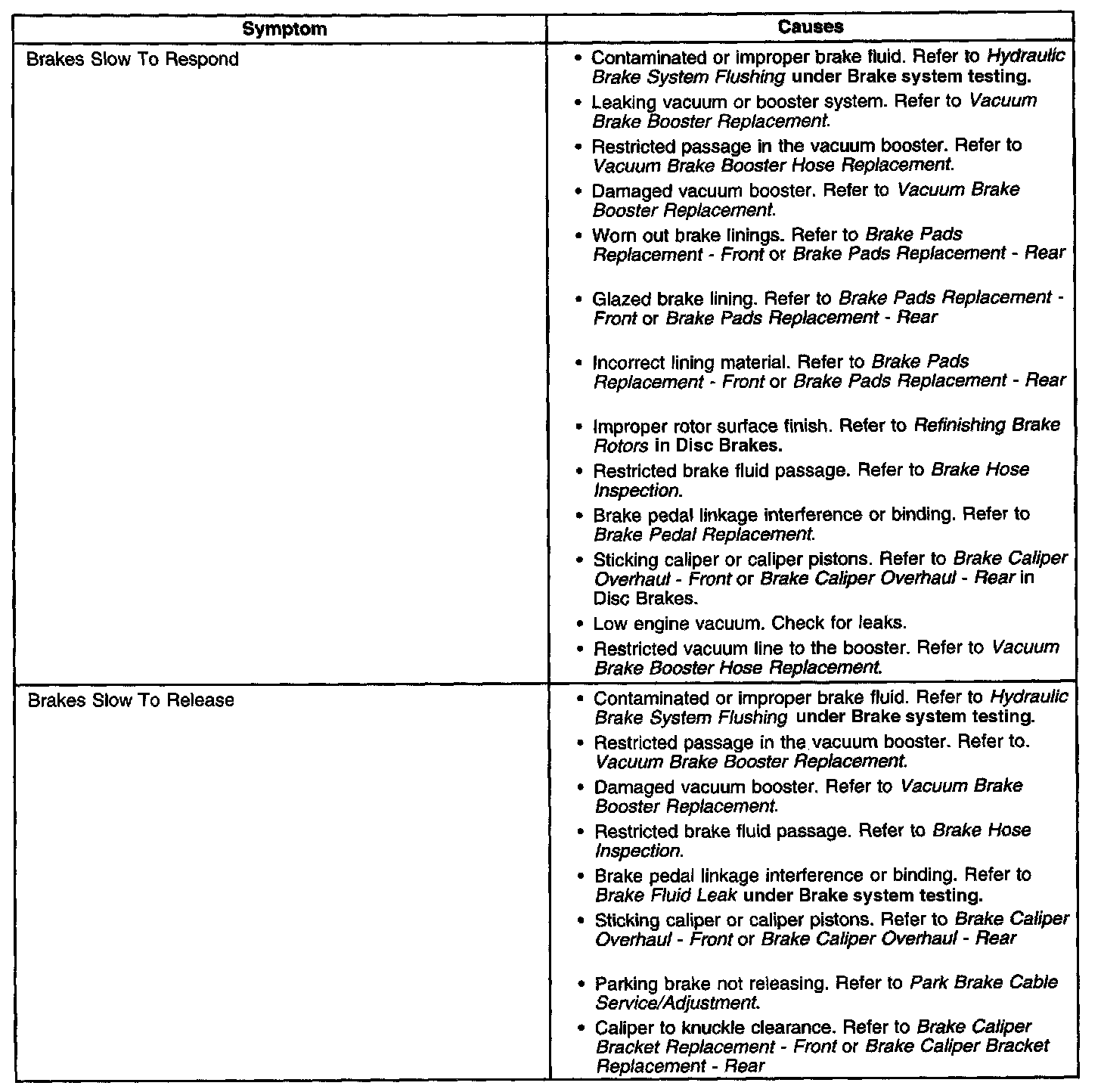

Part 3 of 10

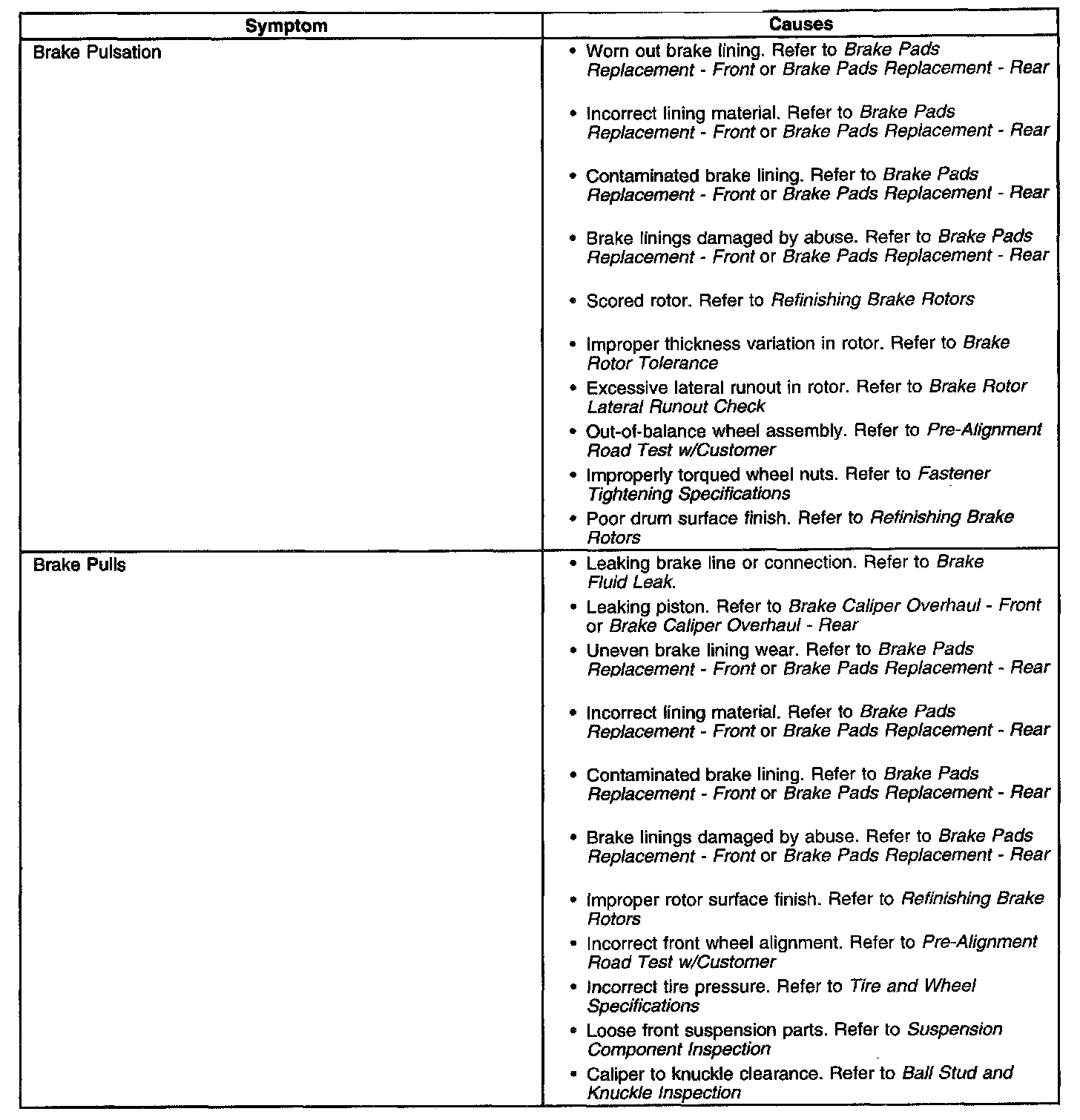

Part 4 of 10

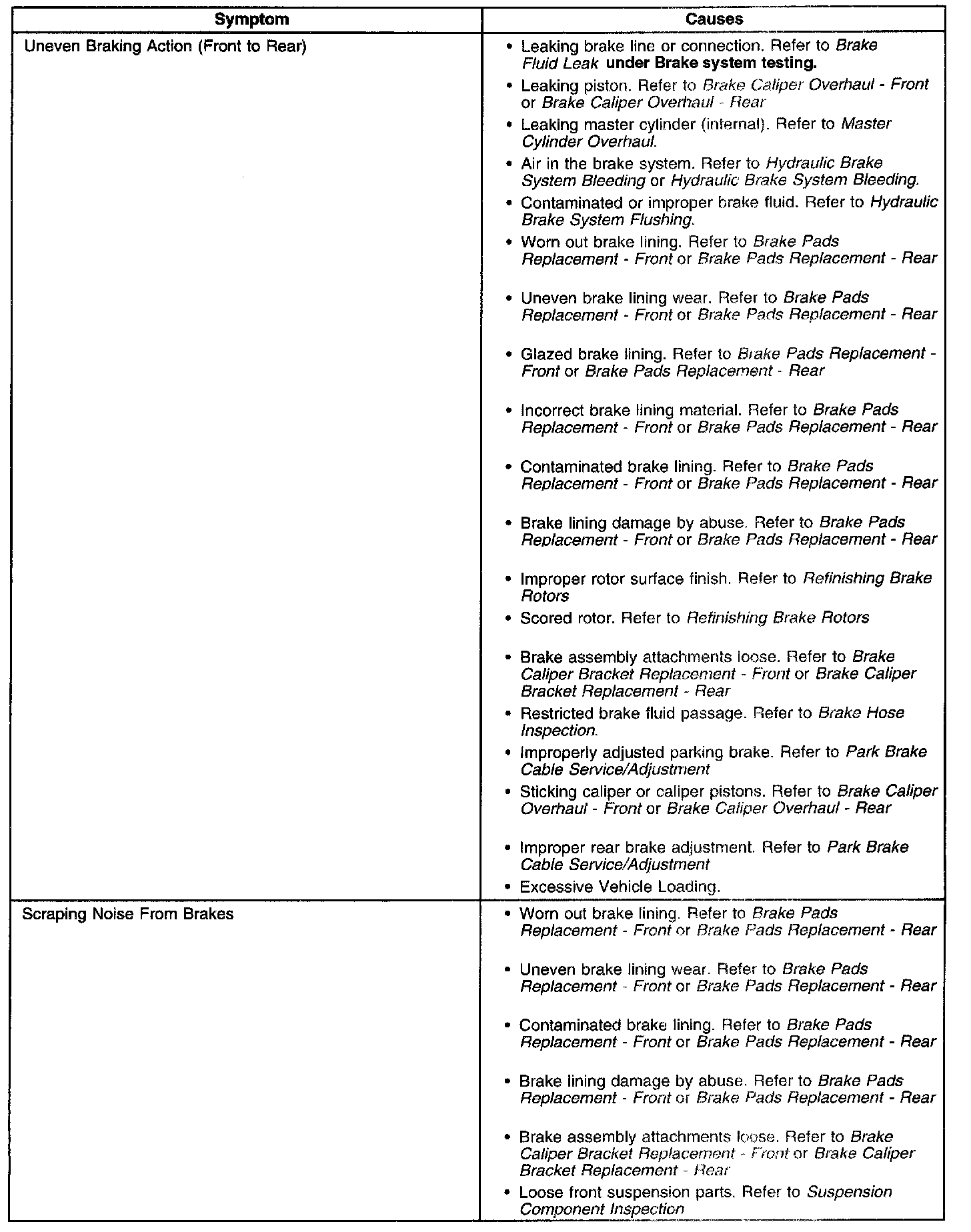

Part 5 of 10

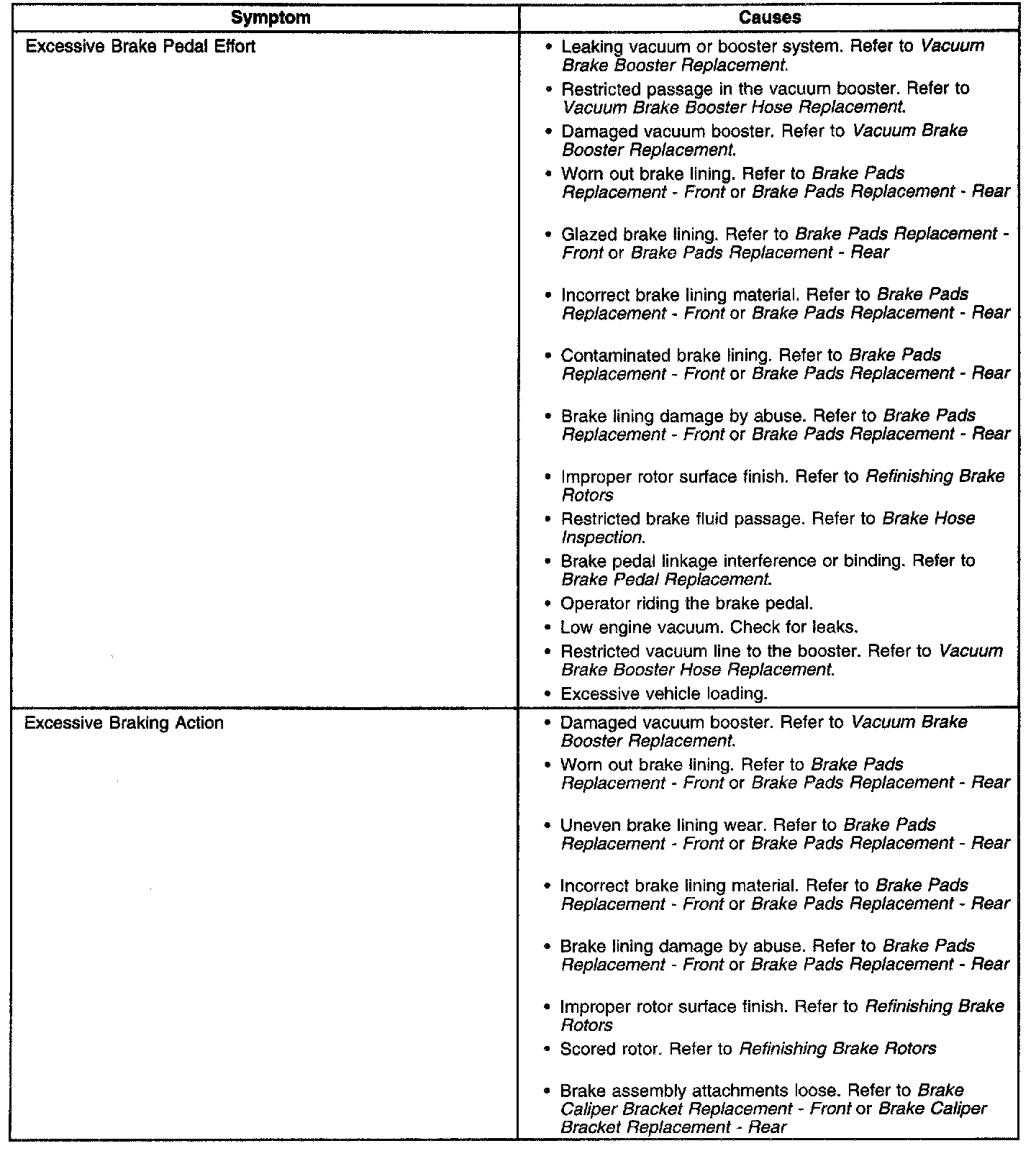

Part 6 of 10

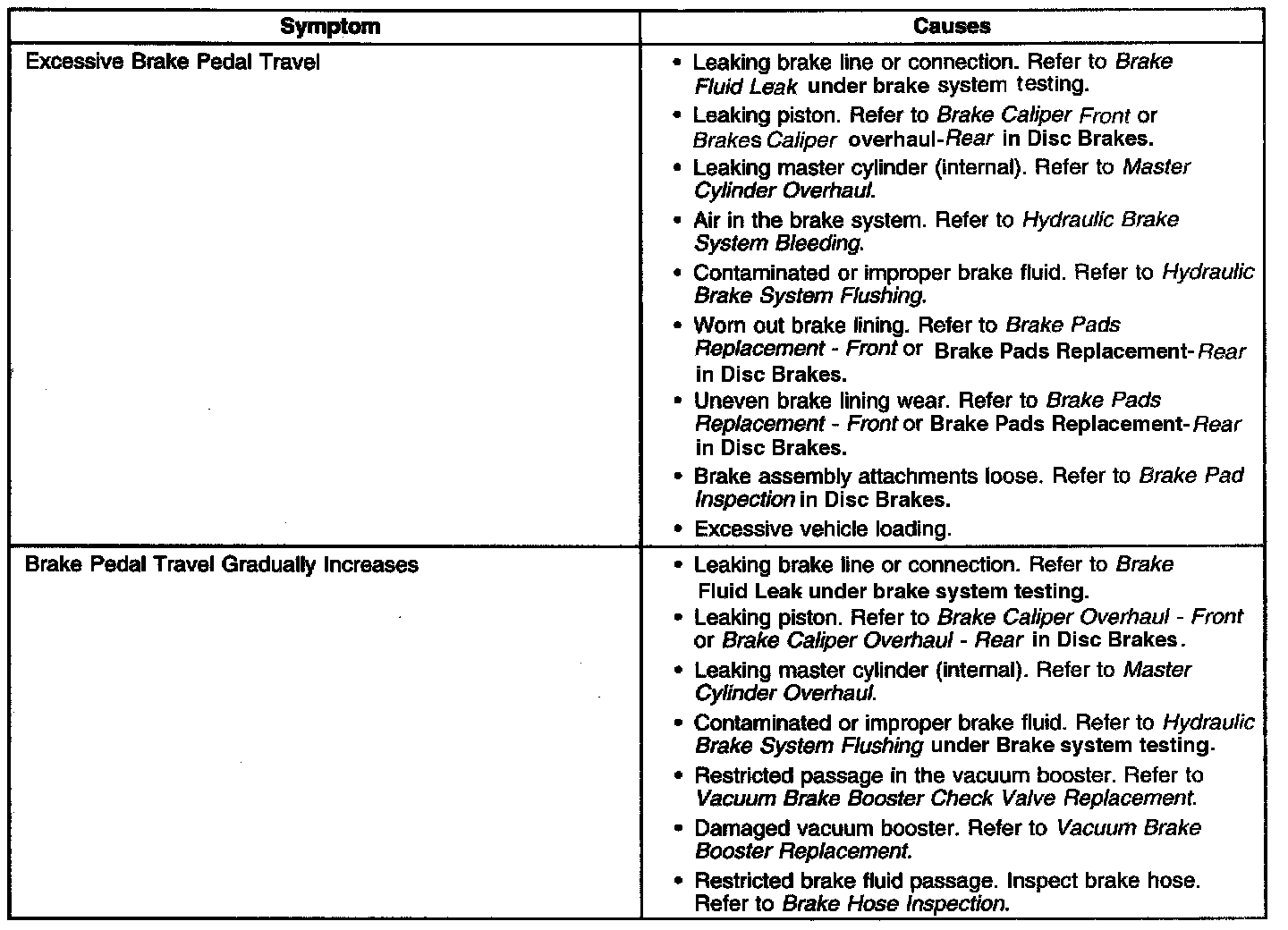

Part 7 of 10

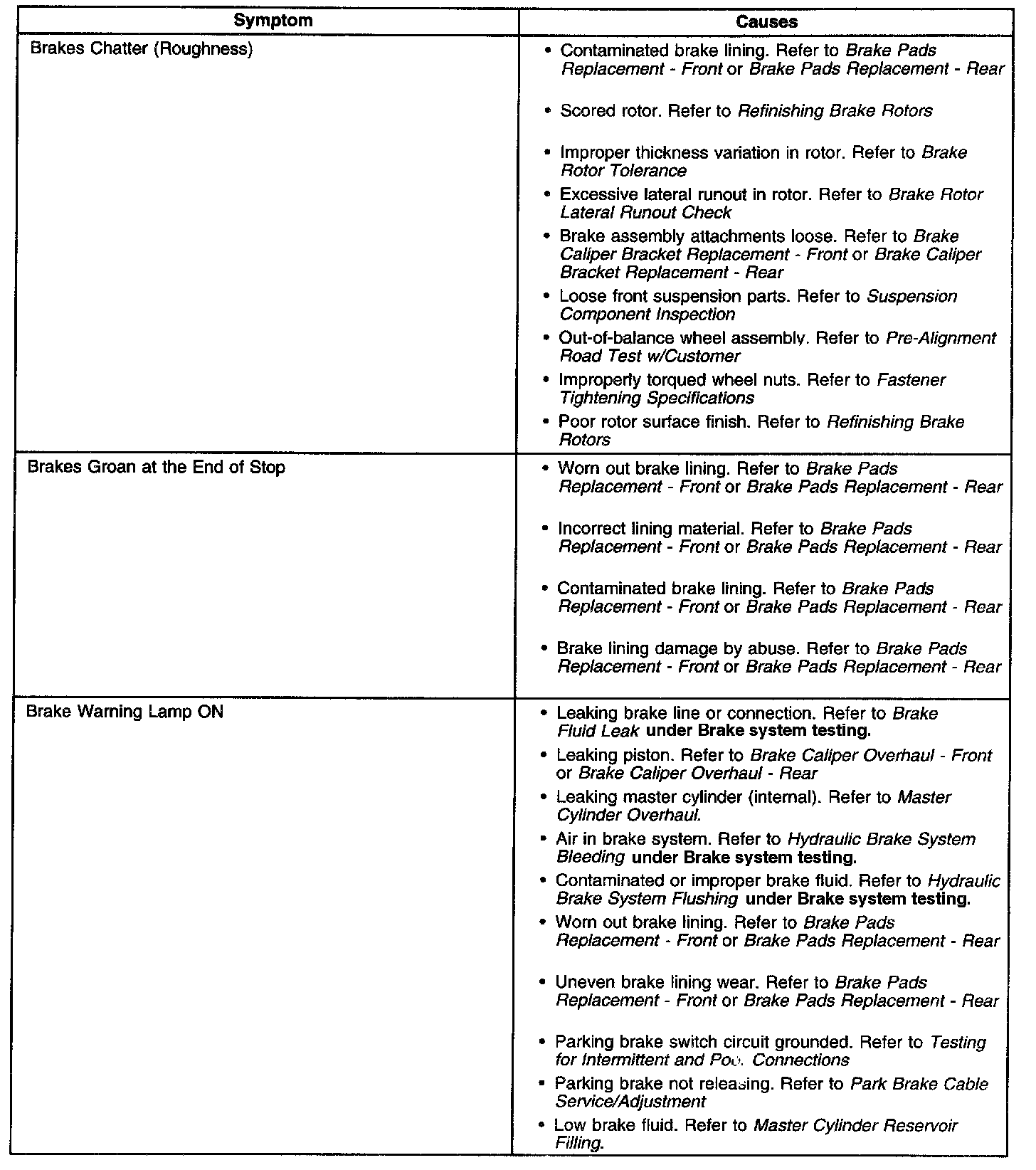

Part 8 of 10





Part 9 of 10





Part 10 of 10
