Brake Pedal Reinforcement Replacement

Removal Procedure





1. Remove the brake pedal. Refer to Brake Pedal Replacement.

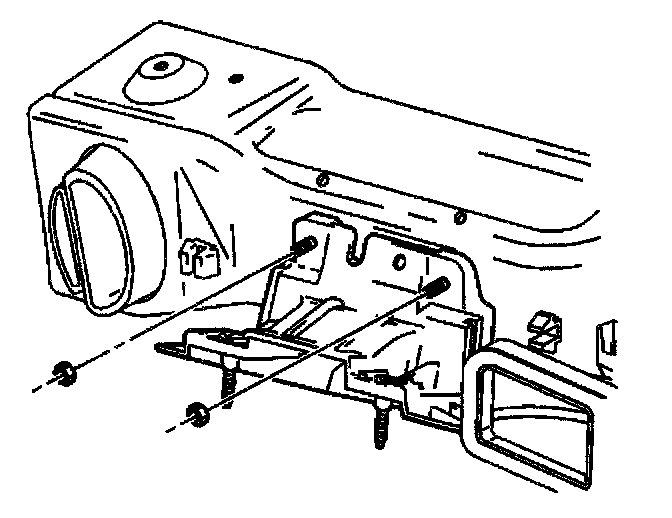

2. Remove the brake pedal reinforcement nuts.
3. Remove the brake pedal reinforcement.

Installation Procedure





1. Install the brake pedal reinforcement.

Notice: Refer to Fastener Notice in Service Precautions.

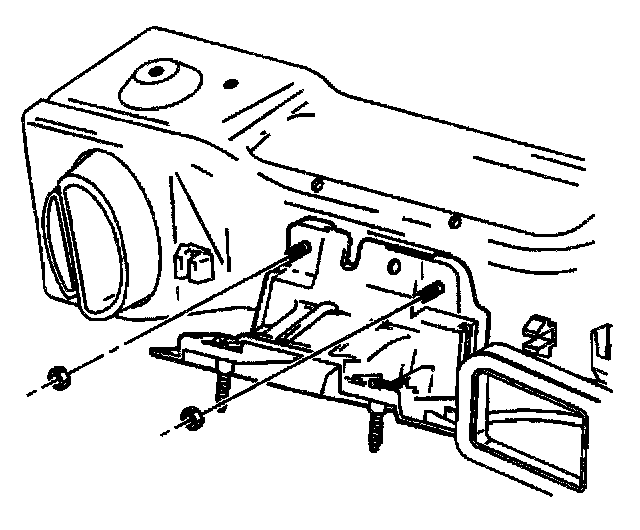

2. Install the brake pedal reinforcement nuts.
^ Tighten the brake pedal reinforcement nuts to 50 Nm (37 ft. lbs.).
3. Install the brake pedal. Refer to Brake Pedal Replacement.
