Brake Pressure Modulator Valve (BPMV) Bracket Replacement

Removal Procedure





1. Turn the Ignition switch to the OFF position.
2. Remove BPMV and EBTCM as an assembly from the BPMV bracket. Refer to Brake Pressure Modulator Valve (BPMV) Replacement.

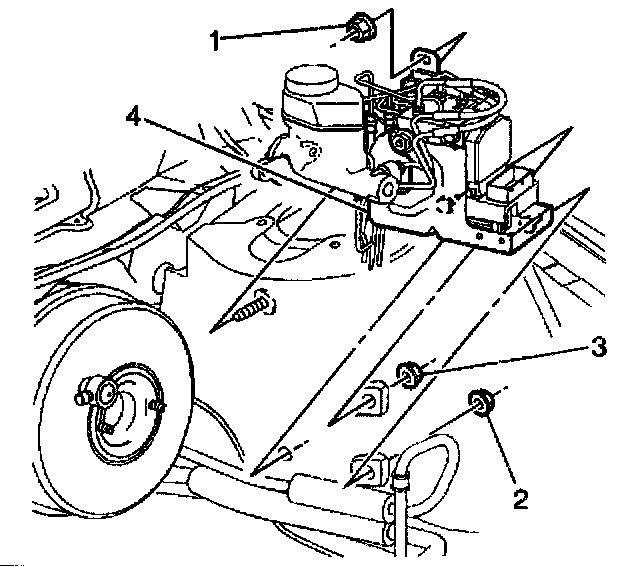

3. Remove the three BPMV bracket nuts (1,2,3) attaching the BPMV bracket (4) to the wheel housing.
4. Remove the BPMV bracket (4) from the vehicle.

Installation Procedure





1. Install the BPMV bracket (4) to the wheel house.

Notice: Refer to Fastener Notice in Service Precautions.

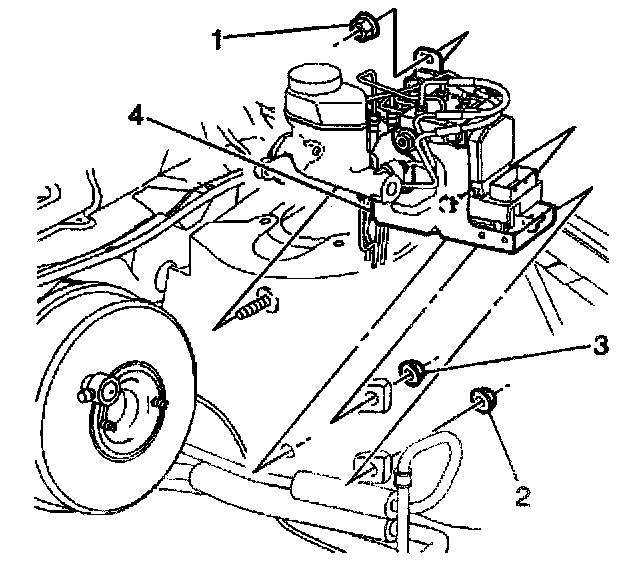

2. Install the three BPMV bracket nuts (1,2,3) to the studs on the BPMV bracket (4).
^ Tighten the three BPMV bracket nuts to 10 Nm (7 ft. lbs.).
3. Install the BPMV and EBTCM as an assembly to the BPMV bracket. Refer to Brake Pressure Modulator Valve (BPMV) Replacement.
4. Turn the ignition switch to the ON position.
5. Perform the A Diagnostic System Check - ABS.
