Weatherstrip Replacement - Rear Door Window

REMOVAL PROCEDURE




1. Lower the rear door window to the full down position.
2. Remove the rear door trim panel.
3. Remove the rear door water deflector.
4. Remove the rear door inner belt sealing strip.

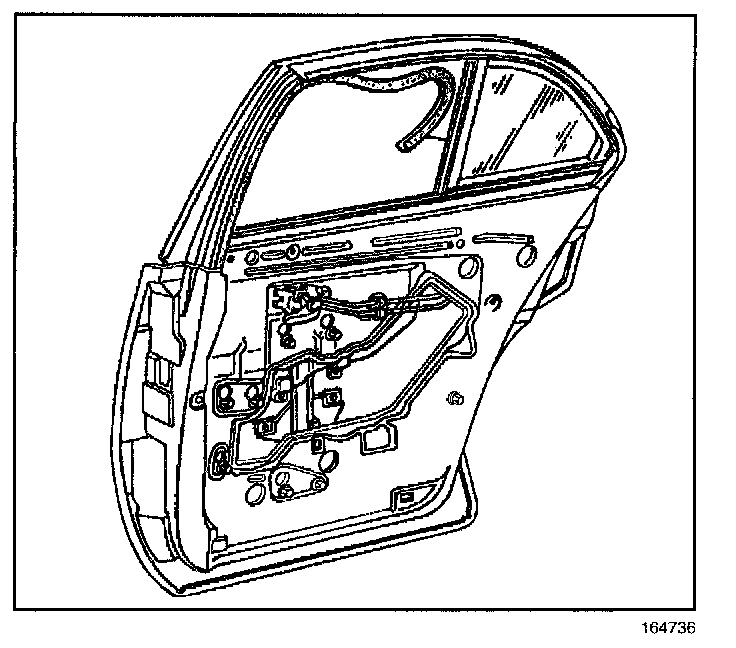

5. Pull the rear door window weatherstrip from the rear door.

INSTALLATION PROCEDURE

IMPORTANT: Lubricate the vertical window channels with the soap and the water.

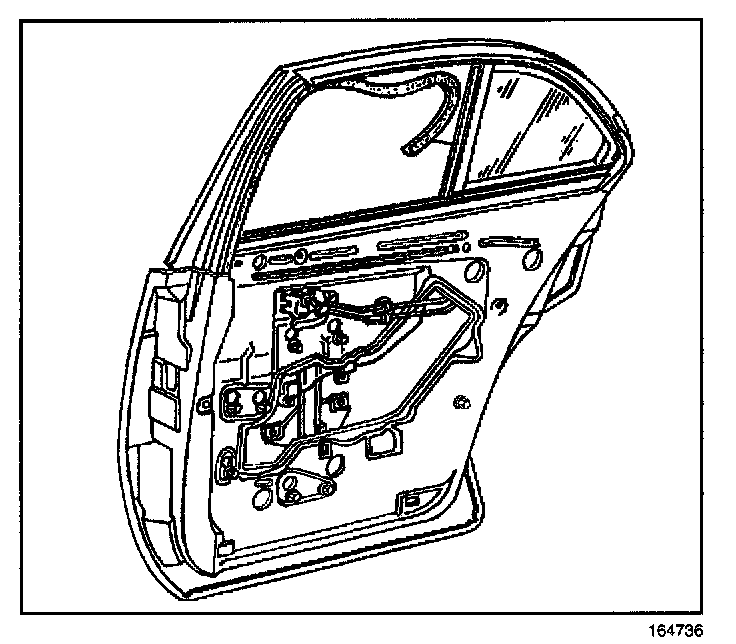

1. Align the rear door window weatherstrip to the rear door.
Start in the rear corner and position the weatherstrip in both directions.
2. Apply pressure to rear door window weatherstrip into the vertical window channel until fully seated.
3. Raise the rear door window to ensure the rear door window weatherstrip is positioned properly.
4. Install the rear door inner belt sealing strip.
5. Install the rear door water deflector.
6. Install the rear door trim panel.
