Rear Door Opening Weatherstrip Replacement

Rear Door Opening Weatherstrip Replacement

Removal Procedure

1. Remove the rear carpet retainers. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement (Rear Side Door Opening Floor Carpet Retainer Replacement) In Interior Trim.
2. Remove the lower quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Quarter Lower Rear Trim Panel Replacement) In Interior Trim.
Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement (Center Pillar Lower Trim Panel Replacement) In Interior Trim.




3. Remove the rear door weatherstrip from the pinch-weld flange.

Installation Procedure

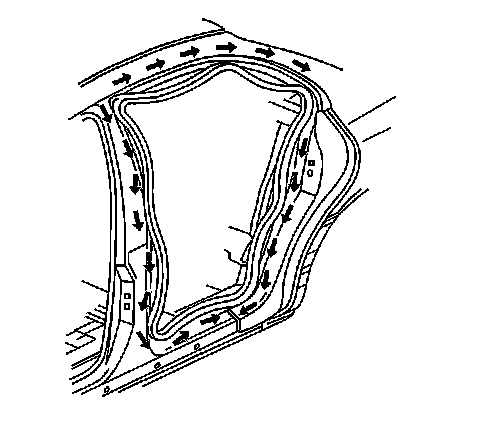

1. Align the rear door weatherstrip to the pinch-weld flange.
2. Apply pressure to the rear door weatherstrip until fully seated.
3. Install the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement (Center Pillar Lower Trim Panel Replacement) In Interior Trim.
4. Install the quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Quarter Lower Rear Trim Panel Replacement) In Interior Trim.
5. Install the carpet retainers. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement (Rear Side Door Opening Floor Carpet Retainer Replacement) In Interior Trim.
