Weatherstrip Replacement - Front Door Opening

REMOVAL PROCEDURE




1. Open the front door.
2. Remove the carpet retainers.

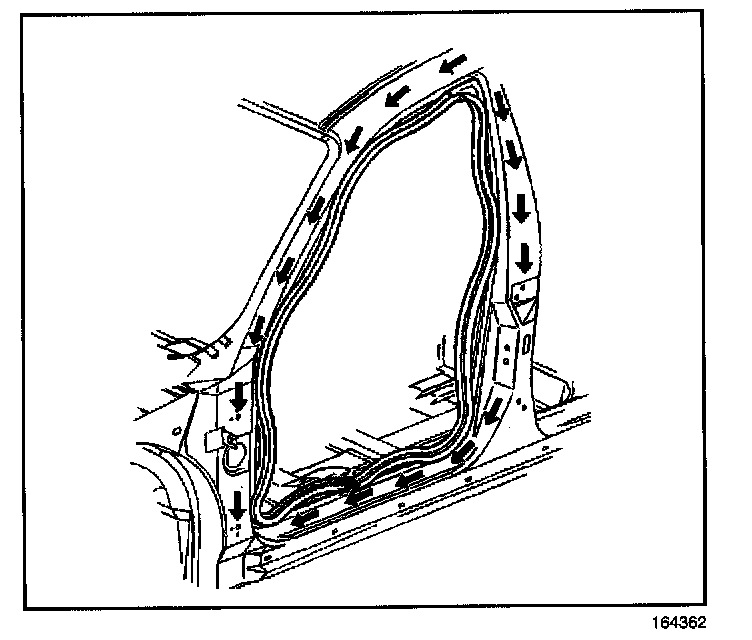

3. Remove the front door weatherstrip by pulling the weatherstrip from the pinch-weld flange.

INSTALLATION PROCEDURE

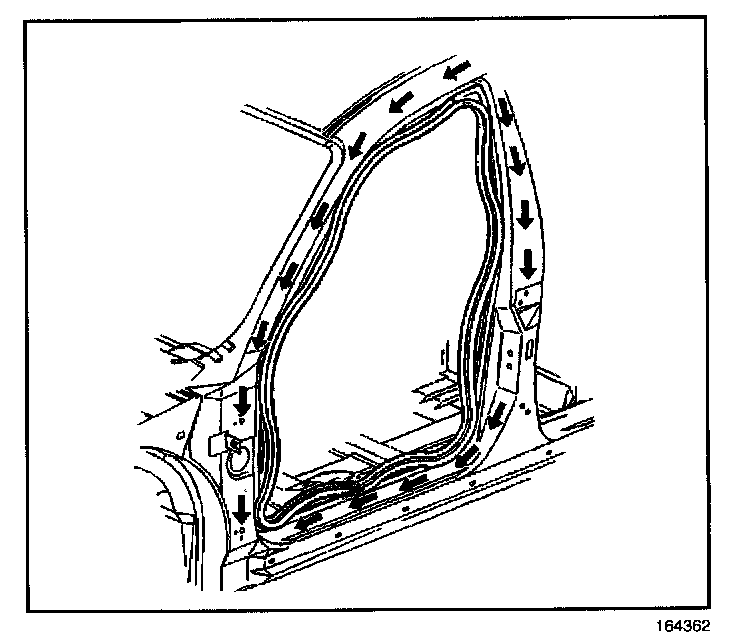

1. Align the front door weatherstrip to the pinch-weld flange.
2. Apply pressure to the front door weatherstrip until fully seated.
3. Install the carpet retainers.
4. Close the front door.
