Rear Seat Armrest Replacement (Non-Folding)

Rear Seat Armrest Replacement (Non-Folding)

Removal Procedure

1. Remove the fixed seat back with armrest. Refer to Rear Seat Back Cushion Replacement (Stationary Seatback) (Rear Seat Back Cushion Replacement (Stationary Seatback))Rear Seat Back Cushion Replacement (Split Folding Seatback) (Rear Seat Back Cushion Replacement (Split Folding Seatback)).

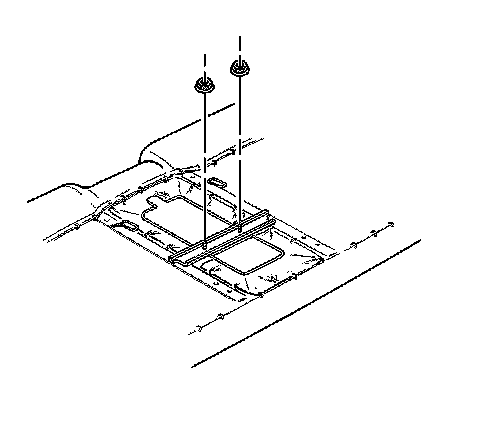

2. Remove the seat back armrest nuts.

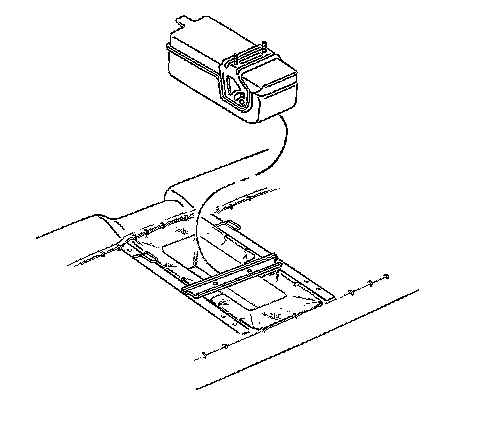

3. Remove the seat back armrest from the seat back.

Installation Procedure




1. Install the seat back armrest to the seat back.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the seat back armrest nuts.

Tighten the seat back armrest nuts to 3 Nm (27 lb in).

3. Install the fixed seat back with armrest. Refer toRear Seat Back Cushion Replacement (Stationary Seatback) (Rear Seat Back Cushion Replacement (Stationary Seatback))Rear Seat Back Cushion Replacement (Split Folding Seatback) (Rear Seat Back Cushion Replacement (Split Folding Seatback)).
