Rear Seat Armrest Replacement (Folding)

Rear Seat Armrest Replacement (Folding)

Removal Procedure




1. Fold down the seat back with the armrest.
2. Open the J-retainer at the bottom of the seat back cover.

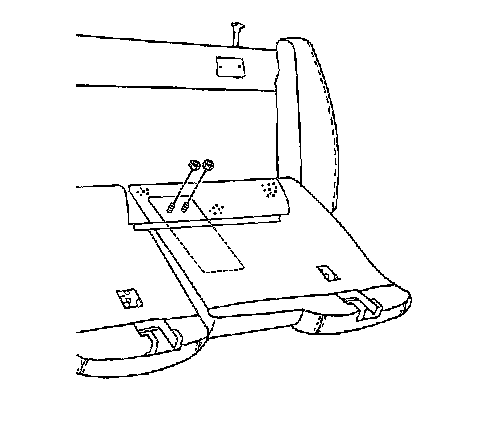

3. Remove the seat back armrest nuts.




4. Remove the seat back armrest from the rear seat back.

Installation Procedure




1. Install the seat back armrest to the rear seat back.
Make sure the seat back cover in neatly tucked underneath the armrest.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the seat back armrest nuts.

Tighten the seat back armrest nuts to 10 Nm (89 lb in).

3. Close the J-retainer at the bottom of the seat back cover.
4. Fold up the seat back with the armrest.
