Front Seat Back Cushion Pad Replacement

Front Seat Back Cushion Pad Replacement

Removal Procedure

1. Remove the front seat back cover. Refer to Driver or Passenger Seat Back Cushion Cover Replacement (1) (Driver or Passenger Seat Back Cushion Cover Replacement (1)).

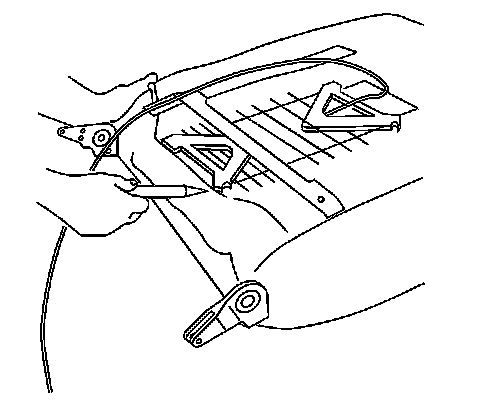

2. Remove the hog rings securing the seat back pad to the frame.




3. Remove the front seat back pad from the front seat back frame.

Installation Procedure




1. Install the front seat back pad to the front seat back frame.




2. Install the hog rings securing the seat back pad to the frame.
3. Install the front seat back cover. Refer toDriver or Passenger Seat Back Cushion Cover Replacement (1) (Driver or Passenger Seat Back Cushion Cover Replacement (1)).
