Power Sunroof Does Not Open

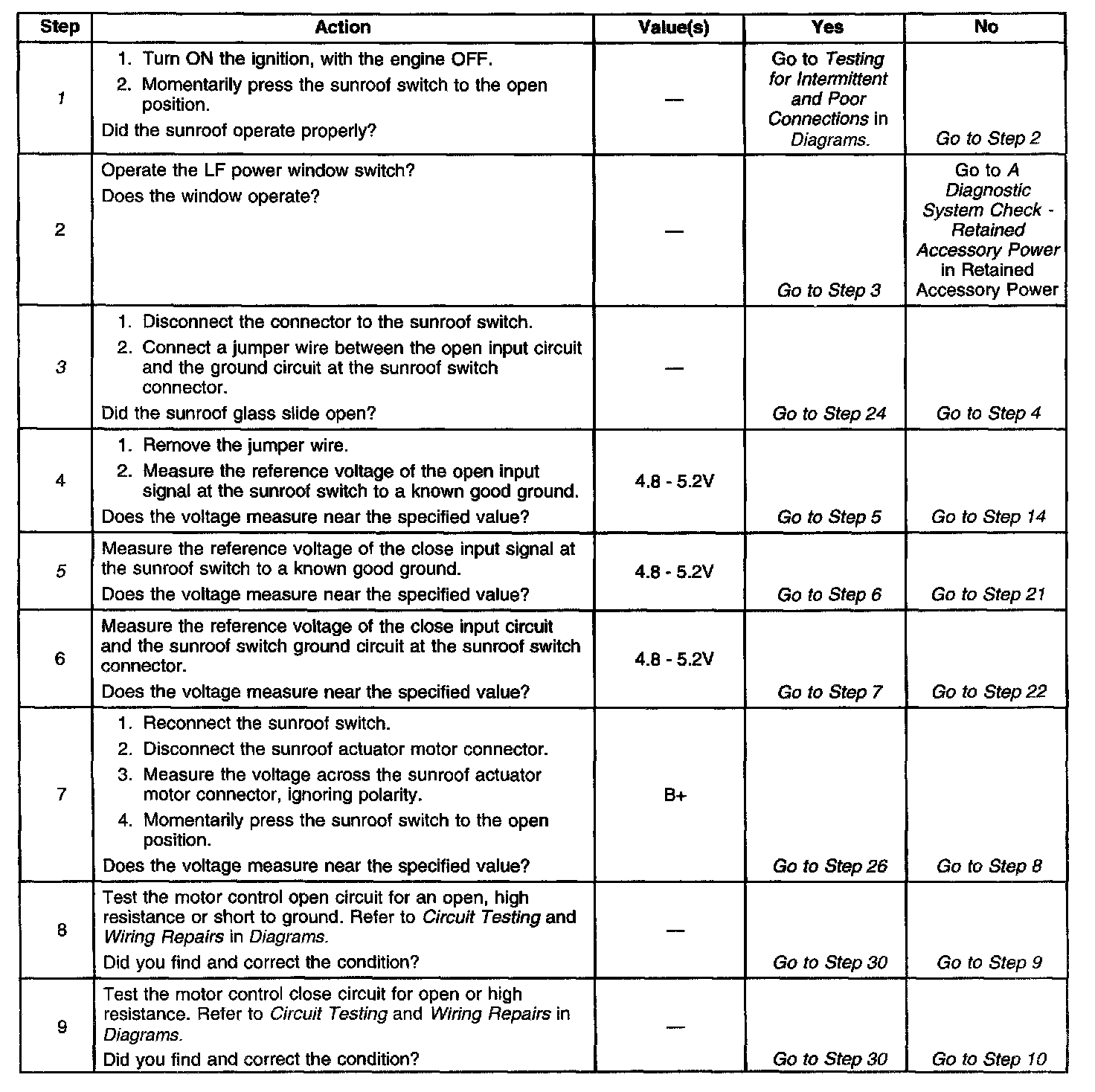

Diagnostic Chart (Part 1 Of 3):

Diagnostic Chart (Part 2 Of 3):

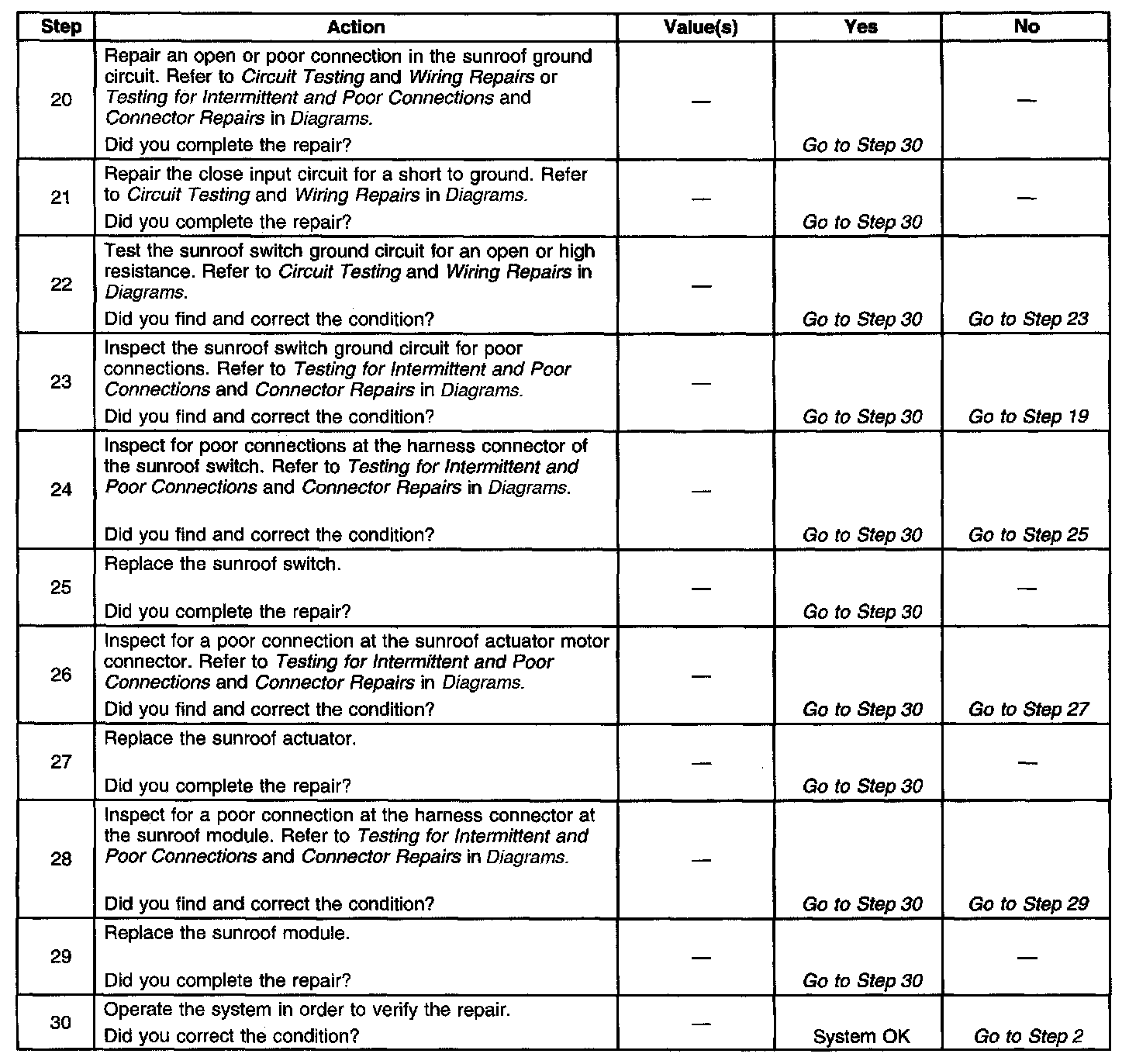

Diagnostic Chart (Part 3 Of 3):

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
1. Verification of the fault is present.
3. Determining if the sunroof switch is faulty.
5. Testing of the close input circuit for a short to ground, which would cause the sunroof module to ignore the open request.
13. Prior to inspecting for poor connections at the limit switches you must take note of the color and location of the limit switch connectors. The connectors can be installed in multiply ways causing improper operation of the sunroof.
