Inside Rearview Mirror Replacement

Inside Rearview Mirror Replacement

Removal Procedure

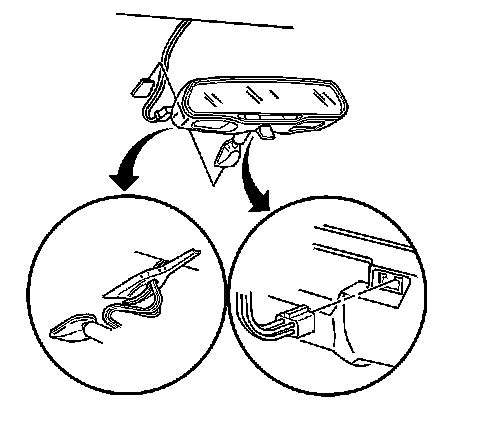

1. For a lighted rearview mirror, remove the wire harness cover.




2. Using a small flat-bladed tool, remove the rearview mirror from the rearview mirror support.




3. For a lighted rearview mirror, disconnect the electrical connector.

Installation Procedure

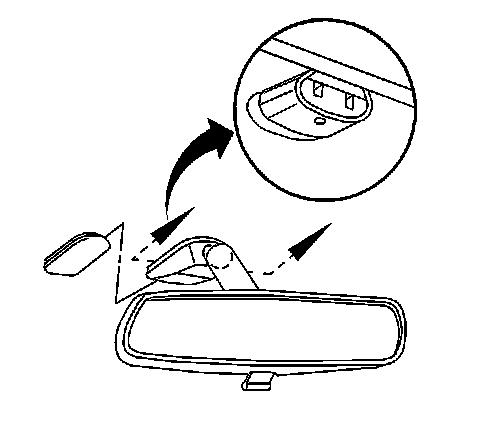

1. For a lighted rearview mirror, connect the electrical connector.




2. Snap the rearview mirror to the rearview mirror support. Fully seat the mirror.




3. For a lighted rearview mirror, install the wire harness cover.
