Center Pillar Lower Trim Panel Replacement

Center Pillar Lower Trim Panel Replacement

Tools Required

J 38778 Door Trim Pad Remover

Removal Procedure

1. Remove the carpet retainers. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Front Side Door Opening Floor Carpet Retainer Replacement) and to Rear Side Door Opening Floor Carpet Retainer Replacement (Rear Side Door Opening Floor Carpet Retainer Replacement).
2. Remove the front and rear door weatherstrips from the pinchweld flange as required.

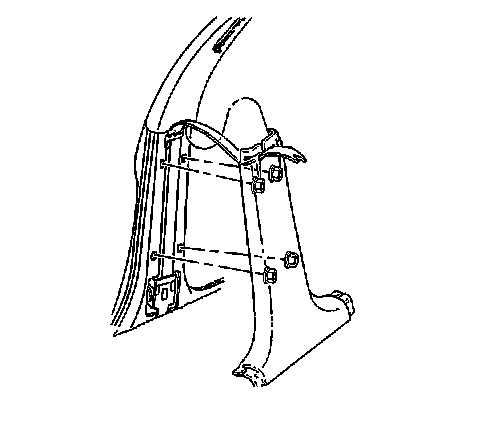

3. Remove the lower trim panel from the center pillar using J 38778 .
4. Remove the seat belt from the slot in the lower trim panel.
5. Remove the lower trim panel from the vehicle.

Installation Procedure




1. Install the seat belt to the slot in the lower trim panel.
2. Align the lower trim panel to the center pillar.
3. Press firmly on the lower trim panel until fully seated.
4. Install the carpet retainers. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Front Side Door Opening Floor Carpet Retainer Replacement) and to Rear Side Door Opening Floor Carpet Retainer Replacement (Rear Side Door Opening Floor Carpet Retainer Replacement).
5. Install the front and rear door weatherstrips.
