Armrest Bracket Replacement

Armrest Bracket Replacement

Removal Procedure

1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement Service and Repair or Rear Side Door Trim Panel Replacement Service and Repair
2. Remove the door water deflector. Refer to Rear Side Door Water Deflector Replacement (Service and Repair) or Front Side Door Water Deflector Replacement Service and Repair

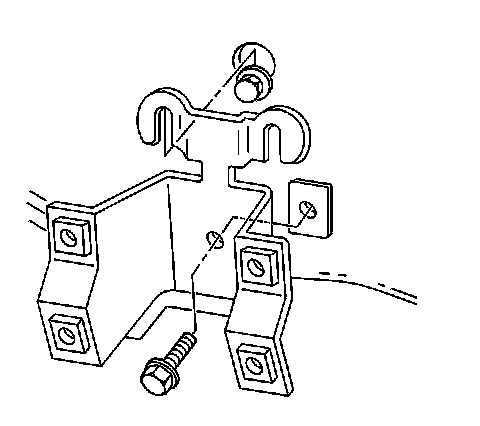

3. Loosen the armrest bracket to door upper bolt.
4. Remove the armrest bracket to door lower bolt.
5. Lift the armrest bracket up and away from the door to remove.

Installation Procedure




1. Align the armrest bracket to the armrest bracket to door upper bolt.
2. Install the lower armrest bracket to door lower bolt.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Tighten the armrest bracket to door upper and lower bolts.

Tighten the bolts to 10 Nm (89 lb in).

4. Install the door water deflector. Refer toRear Side Door Water Deflector Replacement (Service and Repair) orFront Side Door Water Deflector Replacement Service and Repair
5. Install the door trim panel. Refer toFront Side Door Trim Panel Replacement Service and Repair or Rear Side Door Trim Panel Replacement Service and Repair
