Trunk / Liftgate Interior Trim Panel: Service and Repair

Rear Compartment Lid Inner Panel Trim Replacement

Removal Procedure

1. Remove the license lamps. Refer to Rear License Plate Lamp Replacement in Lighting Systems.

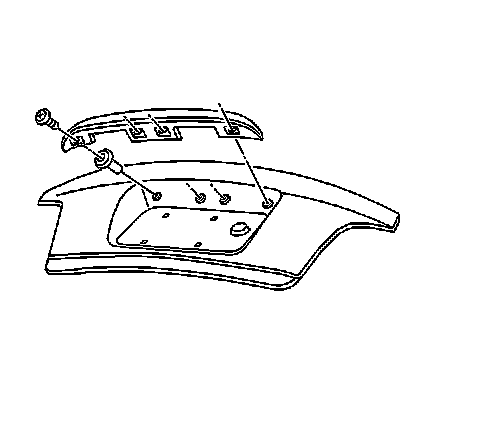

2. Remove the rear compartment lid trim to rear compartment lid screws.




3. Remove the rear compartment lid trim from the rear compartment lid.

Installation Procedure




1. Align the rear compartment lid trim to the rear compartment lid.

Notice: Refer to Fastener Notice in Cautions and Notices.




2. Install the rear compartment lid trim to rear compartment lid screws.

Tighten the rear compartment lid trim screws to 2 Nm (18 lb in).

3. Install the license lamps. Refer toRear License Plate Lamp Replacement in Lighting Systems.
