Front Side Door Replacement

Front Side Door Replacement

Removal Procedure

1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement. Panel Replacement
2. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement. Front Side Door Water Deflector Replacement




3. Remove the front door window belt inner sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement (Front Side Door Window Belt Inner Sealing Strip Replacement).
4. Remove the front door outer belt sealing strip. Refer to Front Side Door Window Belt Outer Sealing Strip Replacement (Front Side Door Window Belt Outer Sealing Strip Replacement).
5. Remove the front door window. Refer to Front Side Door Window Replacement (Service and Repair).
6. Remove the front door window weather-strip. Refer to Front Side Door Window Weatherstrip Replacement (Front Side Door Window Weatherstrip Replacement).
7. Remove the front door window regulator. Refer to Front Side Door Window Regulator Motor Replacement (Front Side Door Window Regulator Motor Replacement).
8. Remove the front door outside handle. Refer to Front Side Door Outside Handle Replacement (Service and Repair).
9. Remove the front door inside handle. Refer to Front Side Door Inside Handle Replacement ().
10. Remove the front door lock. Refer to Front Side Door Lock Replacement (Front Side Door Lock Replacement).
11. Remove the front door weather-strip. Refer to Front Side Door Weatherstrip Replacement (Front Side Door Weatherstrip Replacement)
12. Remove the rubber conduit. Refer to Front Side Door Wiring Conduit Replacement (Front Side Door Wiring Conduit Replacement).

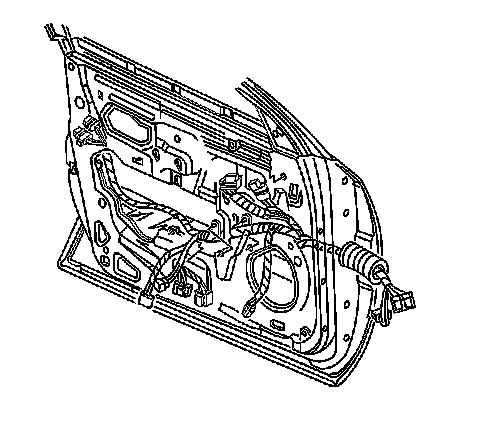

13. Remove the front door wiring harness.
14. Remove the front door body side moldings. Refer to Body Side Molding Replacement ().
15. Remove the front door. Refer to Door Removal - Front (Door Removal - Front).

Installation Procedure

1. Install the front door. Refer to Door Removal - Front (Door Removal - Front).
2. Install the front door body side moldings. Refer to Body Side Molding Replacement ().
3. Install the front door weather-strip. Refer to Front Side Door Weatherstrip Replacement (Front Side Door Weatherstrip Replacement)
4. Install the front door wiring harness.
5. Install the rubber conduit. Refer to Front Side Door Wiring Conduit Replacement (Front Side Door Wiring Conduit Replacement).
6. Install the front door lock. Refer to Front Side Door Lock Replacement (Front Side Door Lock Replacement).
7. Install the front door inside handle. Refer to Front Side Door Inside Handle Replacement ().
8. Install the front door outside handle. Refer to Front Side Door Outside Handle Replacement (Service and Repair).
9. Install the front door window regulator. Refer to Front Side Door Window Regulator Motor Replacement (Front Side Door Window Regulator Motor Replacement).
10. Install the front door window weather-strip. Refer to Front Side Door Window Weatherstrip Replacement (Front Side Door Window Weatherstrip Replacement).
11. Install the front door window. Refer to Front Side Door Window Replacement (Service and Repair).
12. Install the front door outer window belt sealing strip. Refer to Front Side Door Window Belt Outer Sealing Strip Replacement (Front Side Door Window Belt Outer Sealing Strip Replacement).
13. Install the front door inner window belt sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement (Front Side Door Window Belt Inner Sealing Strip Replacement).




14. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement. Front Side Door Water Deflector Replacement
15. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement. Panel Replacement
