Cowl: Service and Repair

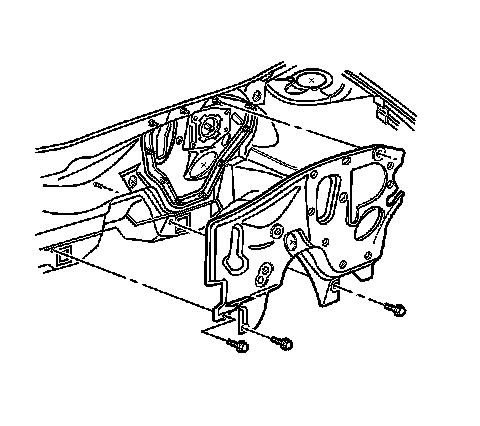

Engine Dash Mat Replacement - Side

Important: The engine side dash mat is composed of a thermoplastic rubber. The material is flexible, so the most desirable way to service the dash mat or to make any repair behind it is locally to pull away or remove the dash mat. In many cases, the dash can be pulled away in one area so that a repair can be made behind it. However, there may be an instance where it is necessary to cut the dash mat in order to make a repair. It is not desirable to cut the dash mat. If it does become necessary, the recommended procedure to repair the cut is as follows.


1. Prepare the surface surrounding the cut by lightly sanding the area.




2. Apply contact cement between the cut surface and the surrounding area.
3. Allow the cement to cure before stressing the repaired area.
