Plenum Water Deflector Replacement

Plenum Water Deflector Replacement

Removal Procedure




1. Open the hood.
2. Remove the right side of air inlet grille. Refer to Air Inlet Grille Panel Replacement (Air Inlet Grille Panel Replacement).

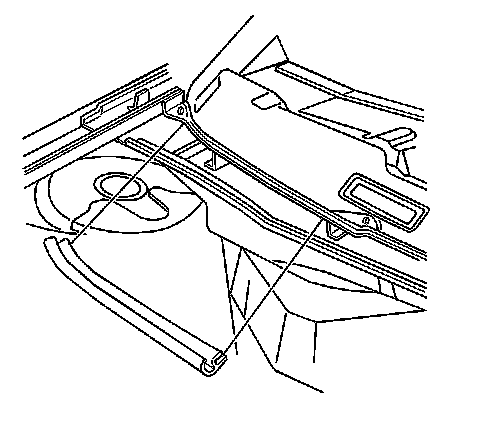

3. Start at the center of the plenum chamber deflector and pull forward and off of the flange.




4. Remove the plenum chamber deflector extension.

Installation Procedure




1. Align the plenum chamber deflector to the flange.
2. Install the plenum chamber deflector to the flange.
Start at the passenger side corner and with a pressing motion work toward the center of the car.

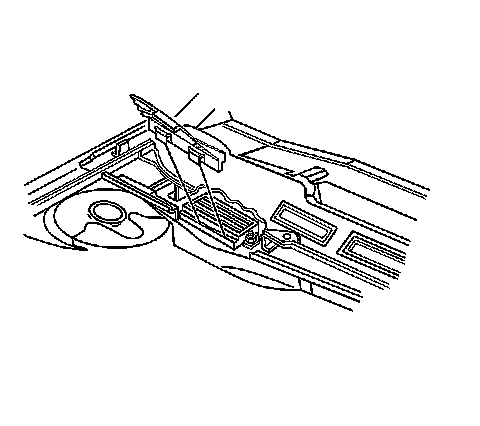

3. Insert the tabs of the plenum chamber deflector extension to the flange of plenum chamber and press down until fully seated.
4. Install the right side of air inlet grille. Refer to Air Inlet Grille Panel Replacement (Air Inlet Grille Panel Replacement).
5. Close the hood.
