Compact Disc Player (CD): Service and Repair

REMOVAL PROCEDURE




1. Open the rear compartment.

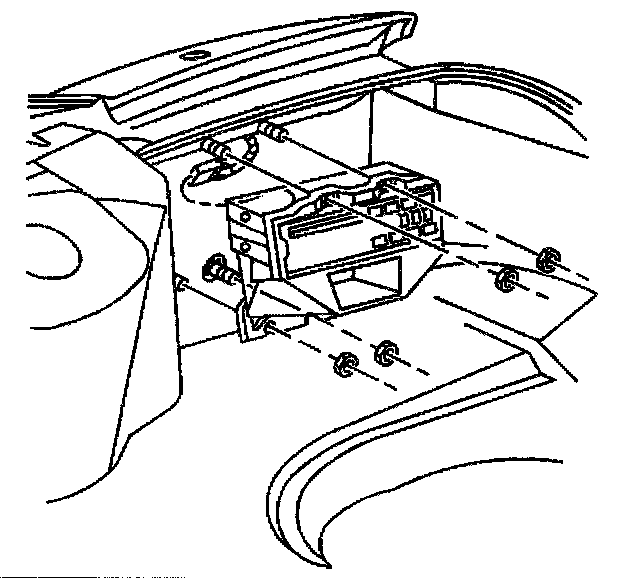

2. Remove the remote Compact Disc (CD) player bracket nuts. Reposition the bracket.
3. Disconnect the electrical connector from the CD player.

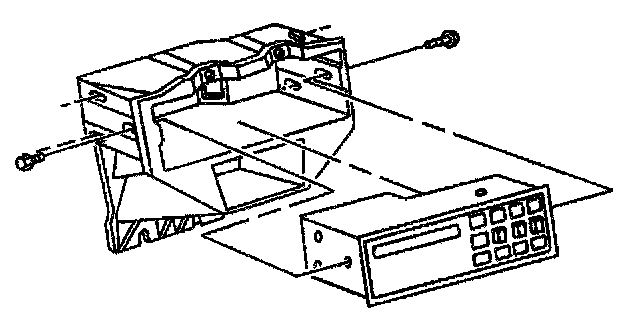

4. Remove the CD player bracket bolts.
5. Remove the CD player.

IMPORTANT: Install the transportation pin when shipping or transporting the remote CD player.

6. If shipping or transporting the remote CD player, install the transportation pin by inserting the pin into the original position and fixing in place with clear adhesive tape.

INSTALLATION PROCEDURE




1. Remove the transportation pin from the remote compact disc (CD) player, if installed previously.
2. Install the CD player to the bracket.

3. Install the remote CD player bracket bolts.

Tighten
Tighten the CD player bracket bolts to 2 N.m (18 lb in).

4. Connect the electrical connector to the CD player.




5. Install the CD player bracket to the studs.
6. Install the CD player bracket nuts.

Tighten
Tighten the CD player bracket nuts to 7 N.m (62 lb in).

7. Close the rear compartment.
