Amplifier: Service and Repair

REMOVAL PROCEDURE

TOOLS REQUIRED
J 38778 Door Trim Pad and Garnish Clip Remover




1. Remove the rear window trim panel.

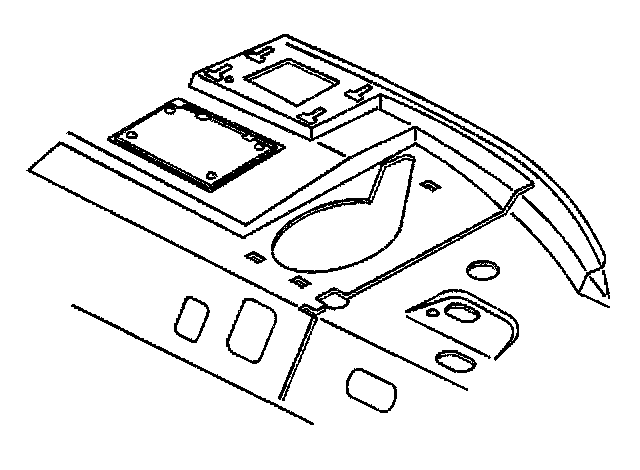

2. Remove the rear seat sound barrier.

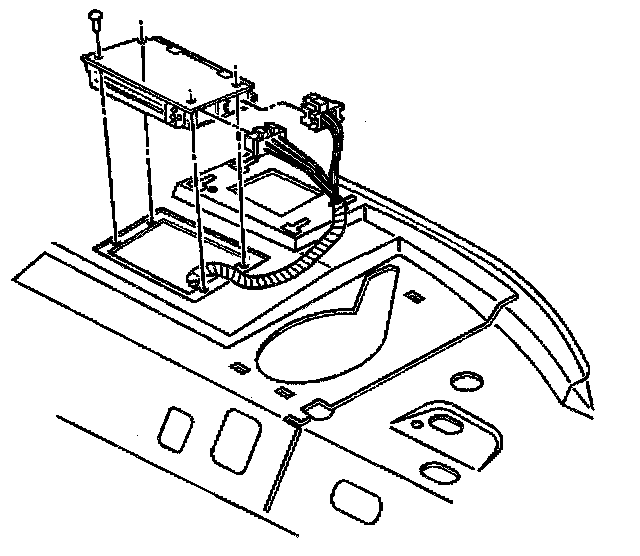

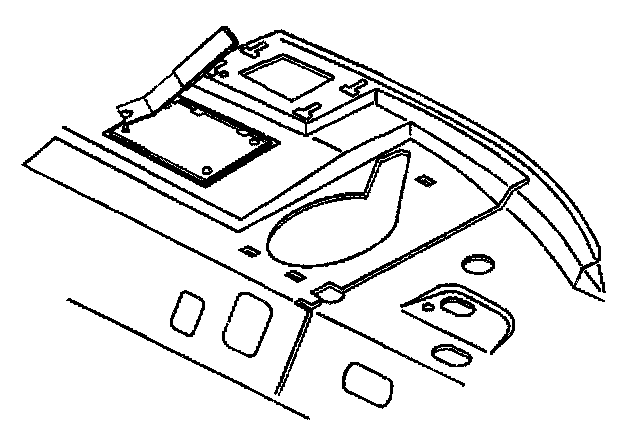

3. Use the J 38778 in order to remove the audio amplifier push-in retainers.




4. Lift the audio amplifier from the rear shelf. Disconnect the electrical connectors from the audio amplifier.
5. Remove the audio amplifier.

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the audio amplifier.




2. Install the audio amplifier to rear shelf.
3. Install the audio amplifier push-in retainers.
4. Install the rear seat sound barrier.
5. Install the rear window trim panel.
