P1630

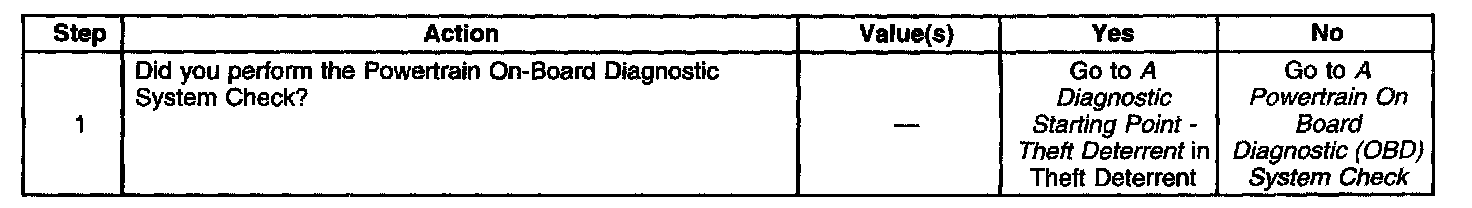

Diagnostic Chart:

CIRCUIT DESCRIPTION
The Vehicle Theft Deterrent (VTD) system is incorporated within the Body Control Module (BCM). If the BCM has been replaced, the password must be relearned using approved Techline diagnostic equipment. If the Powertrain Control Module (PCM) is replaced, the replacement PCM should learn the password within a few seconds after the ignition is turned ON. DTC P1630 is an information code indicating that the PCM is ready to learn the VTD password. The engine will start and continue to run with DTC P1630 set. Refer to A Diagnostic Starting Paint - Theft Deterrent for further information regarding the VTD system.

CONDITIONS FOR SETTING THE DTC
^ The VTD system has allowed fuel delivery.
^ The PCM remains in the theft deterrent password learn mode for more than 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ The current DTC will clear when the diagnostic runs and does not fail.
^ Use a scan tool in order to clear the MIL diagnostic trouble code.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended. Refer to Powertrain Control Module (PCM) Description, Clearing Diagnostic Trouble Codes.

DIAGNOSTIC AIDS
A new replacement PCM will be in a functional state to learn the password from the BCM. If the BCM is replaced, the PCM must be placed in password learning mode to relearn a new password. Once learned, the password becomes permanent information that remains with the vehicle. The loss of PCM battery or ignition voltage will not affect the programmed password information.
